Grizzly   |  Model: G0768Z
8" x 16" Variable-Speed Lathe with DRO
Price: $1,295.00
Recently Added ×
You May Also Like
(1)

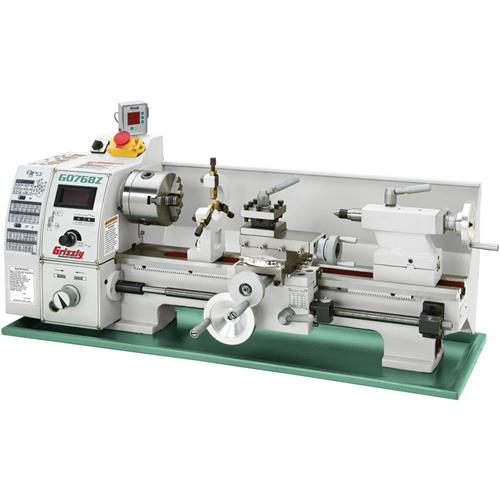

Grizzly G0768Z - 8" x 16" Variable-Speed Lathe with DRO

click to zoom

tap to zoom

See this item in our 2017 Main Catalog!
533
Model: G0768Z
Buy Now!
Price:
Freight:  Freight
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
This 8" x 16" Variable-Speed Lathe is perfect for a sturdy workbench or as a stand-alone unit when mounted on the T26599 Optional Stand. Features variable-speed spindle with high/low speed ranges, convenient quick-lock tailstock, reverse feed for cutting left-hand threads, and a great selection of included standard equipment.

Specifications:

  • Swing over: bed 8-1/4", cross slide 4-5/8"
  • Distance between centers: 15-3/4"
  • Spindle: bore 0.787" (20mm), taper MT#3
  • Motor: 600W (3/4 HP), 110V, DC, 10A
  • Spindle speed ranges: Low 50–1000, High 100–2000 RPM
  • Travel: compound rest 2-1/8", cross slide 3"
  • Tailstock: quill travel 2", taper MT#2
  • Feed speeds: (3) 0.0037"–0.0071"/rev
  • Inch threads: (15) 9–44 TPI
  • Metric threads: (12) 0.4–3.0mm
  • Footprint: 31-1/2" x 10-1/2"
  • Overall size: 36" W x 16" D x 14" H
  • Approx. shipping weight: 166 lbs.

Standard Equipment:

  • 4" 3-Jaw and 4-jaw chucks
  • 6-3/4" Faceplate
  • Steady rest & follow rest
  • 4-Way turret tool post (3/8" max tool size)
  • MT#2 & MT#3 dead centers
Show More...

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

1 Customer Review (5 out of 5 stars): Sign in to write a review

Love it!
5/ 5stars

This was a move up from a Harbor Freight mini lathe and was it a huge jump! Very well made and finished out. Calibration setup was spot on. It was even easy to clean up. I have the stand on order for it now and it should complete my upgrade. Well worth the three month wait!
