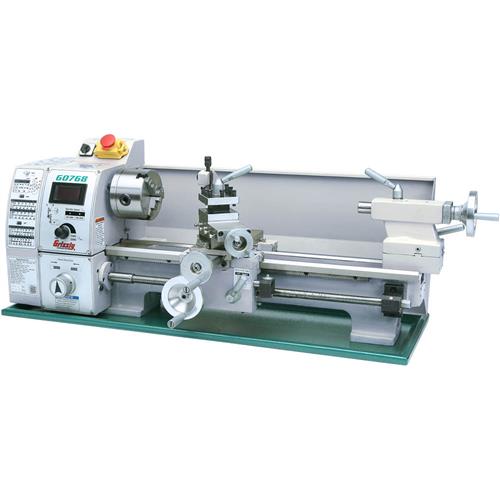

Grizzly G0768 - 8" x 16" Variable-Speed Lathe
click to zoom
tap to zoom
Free shipping within the Contiguous United States.
Sales of this outlet item are limited to quantity on hand.
Free shipping within the Contiguous United States.
Sales of this outlet item are limited to quantity on hand.
- Swing over: bed 8-1/4", cross slide 4-5/8"
- Distance between centers: 15-3/4"
- Spindle: bore 0.787" (20mm), taper MT#3
- Motor: 600W (3/4 HP), 110V, DC, 10A
- Spindle speed ranges: Low 50–1000, High 100–2000 RPM
- Travel: compound rest 2-1/8", cross slide 3"
- Tailstock: quill travel 2", taper MT#2
- Feed speeds: (2) 0.0037"–0.0068"/rev
- Inch threads: (15) 9–44 TPI
- Metric threads: (12) 0.4–3.0mm
- Cuts LH threads
- Footprint: 31-1/2" x 10-1/2"
- Overall size: 36" W x 16" D x 14" H
- Approx. shipping weight: 166 lbs.
- 4" 3-Jaw and 4-jaw chucks
- 6-3/4" Faceplate
- Steady rest & follow rest
- 4-Way turret tool post (3/8" max tool size)
- MT#2 & MT#3 dead centers
Accessories and Related Items:
You May Also Like:
Customers who purchased this item also purchased:
19 Customer Reviews (4.4 out of 5 stars): Sign in to write a review
I agree with other reviews, this units is a good middle ground above the mini-lathes available elsewhere and a TRUE industrial lathe. I am now at the 10 month mark in ownership of this lathe and these are my observations:
-Be prepared to take the lathe apart on day one. The ways are not deburred on the edges and the "oil" they use is terrible. The gibs are not adjusted at all. Just be prepared to completely take apart the carriage, debur, clean, oil, and adjust everything. DO NOT just start running material.
-To be a 3/4 HP machine it feels quite underpowered. I suspect its the low quality DC motor drive, more on that below.
-10 months after purchase my DC motor drive failed. Looking at it you can tell it is extremely poorly made. Solder connections are poor, components are undersized, etc. Mine was replaced under warranty. If the warranty replacement fails I will replace it with a 3rd party motor driver which will allow use of the full 3/4 HP of this machine.
-Tool post is a joke, a machine of this price should include a basic QCTP. Buy one cheaply somewhere, dont bother struggling with shims on this one.
-Chucks are a little notchy, make sure you keep them clean and lubricated
With all those points, I still think its decent value for the money. If this fits your need it could be a good machine for you if you are willing to put a little effort in. If you are completely new to mechanical machinery and dont have the skills to tinker with something or if you are a machine shop where labor is 20x minimum wage I would look elsewhere. I do think this machine will last my lifetime with my level of use, but I will certainly have to perform some repairs more than maintenance over its life.
Bought a month ago used it for what I needed machine works great. Can't wait to use for other projects.
I am happy with my milling machine but my chuck on my lathe is not working well. Both the 3 and 4 jaw chuck hangs up. Other than that I'm happy with both machines. Is there any way I can get a replacement?
Nice lathe with potential but the biggest draw-back is the motor. It last the power this lathe should have. There are of course work-a-rounds to fix this problem but it would void the warranty.
Upgrade the motor and you have a nice little lathe.
I've had the lathe a few weeks, I really love it, but the power feed is starting to vibrate in 1 direction(it was running really smooth). I hope it's not too bad of a problem. Other than that, I really love it. The only complaint I have(and I already mentioned this in another review) was I had to order this lathe and a mill separate(next day), so I asked Grizzly to hold the mill till the lathe was shipped, but they shipped it anyways. Luckily UPS saved the day and arranged for them to be delivered together, or it would of cost me double to hire movers to get the machines into my basement.
So far, I am very happy with it - Decent product for the price - Grizzly service excellent.
I bought this little lathe last month and I couldn't be happier. I plan on making additional purchases in the future also.
After receiving my lathe I got to work right away, the only issue I am having is the carriage has a lot of play
excellent but buy the mill lathe combo save the hassle of finding mill later
Well the machine was fine. I sold it and ordered the South Bend. I needed a larger unit. Now I'm happy. Mr. REILLY
I have always wanted a metal lathe and I am happy with this Grizzly 8x16 lathe and had fun making parts.
This lathe is a good footprint larger and heavier build then the very common 7" X 16" lathe. I am glad I bought this Model and after a little fine tuning this lathe I can do and have done some really precise work with this wonderful well build lathe. The price was not breaking the bank. I do enjoy the DC motor with torque and the speed control with the digital readout. Nice to have when parting, knurling und work with different material like plastic's, brass or aluminum. I think I am well served with this product. When someone like me with not to much shop space is looking for a better than the average lathe, take this lathe seriously in consideration.
Love it... I do strongly recommend the quick change tool holder kit. love the adjustability of the machine.
good machine, bad description it did not fully list the threads it could and couldn't cut.
I pulled the trigger when it went on sale for $950 plus shipping.
Shipping crate showed damage, but not in area that might affect the product.
Unpacked, cleaned off the wax/grease shipping protective material, and de-burred gib edges and lapped the machined surfaces with wet/dry paper on a sheet of glass.
First project was to mount an AXA QCTP onto the compound without altering the boss or the M10x1.5 stud.
Certainly would like to own a larger heavier unit, but the G0768 fits my work space, and my level of expertise at the present time.
uTube videos are very helpful in starting out.
There are a few non-obvious things about this lathe. You can move one of the belts to change the spindle speed between high and low ranges- I was thinking that this would be better than the plastic gear used on mini-lathes (which tends to break). However this belt change is not easy. You need to remove the side panel to access the belt and adjust a set-screw, OK. But very annoyingly, you must also remove the back panel with the circuit board on it to loosen a nut which holds a belt pulley in place. This is not an easy or quick operation. I was thinking that the low belt position would be good to increase torque at low spindle speeds, but there is a label which says that you should not run the motor at high speed for long and suggests to leave the belt in the high speed position.
Others have pointed out the weak design of the compound rest locking screws, but there is more: notice that the compound hand-wheel has two handles, preventing quick single-handed rotation. This is because the compound leadscrew has no proper bearings (just a hole in thin metal) and the mating threads are right in the steel of the sliding part of the compound. There is enough play that the handwheel binds if you try to rotate it single handed. The cross slide design is better (there is a long hole to keep the leadscrew straight, and brass threads set up to be deformed slightly from a set-screw for backlash compensation). I think the smaller mini-lathes also now have a better design- notice that many of them have a chrome hand-crank for the compound.
Like most mini-lathes, the cross slide and compound wheels are marked as 40 mils per rotation, but it uses metric lead-screws, so this it's really 39.37 mils per rotation. I don't think this is a big deal, but think it would be better to mark the wheel in .025 mm increments to match the screw.
The main carriage wheel moves the carriage one inch per rotation (I mention this because it's not documented).
A minor point is that it is all too easy to crash the carriage into some sheet-metal covering the motor. The issue is that during work you are focused on the tool post, chuck and front of the lathe, so it is not so obvious that this interference exists in the back. You should put some tape on the bed to mark this position in the front.
When you buy a chuck for the tailstock, get a normal MT#2 arbor, not a short one made for mini-lathes. The arbor needs to be long enough to be ejected by the tailstock wheel.
I bought this lathe because it's a step up from the mini-lathe, and Grizzly makes it a good value with the included four-jaw chuck, face plate and rests. It's nice that this lathe can easily make reverse threads with the reversing gear-box on the front. This lathe seems to be a version of the VM210V lathe, which now has a version with brushless motor (eliminating the high/low belt speeds) but also sadly without the reverse thread gear-box. I want the brushless motor and the gearbox :-)
Another good point is that the brushed motor of the G0768 is very quiet (from what I can tell it's quieter than the SC4 brushless).
Recently purchased because of the size. I'm a retired tool and die maker that wanted a "hobby" lathe. I'm very surprised at the feed cuts I'm able to take. I was concerned with it being only a 3/4 hp motor. It takes them with ease (steel and hard steel). You can lock the carrage for face cuts by putting the carrage direction in netural and engageing the carrage feed lever(to lock the half nuts). The dial measurements are very accurate (checked with dial indicator). I came well packed by ups freight. Make sure you do the bearing run-in (see owners manual-set up instructions) to save your self headaches in the future. This is a VERY WELL made machine, I'm VERY IMPRESSED with it. HIGHLY RECOMENDED !!!!!
I purchased this machine originally back in May, but it arrived damaged so I refused delivery and Grizzly sent me another one. Since then, I have experimented with the machine and found that it has tight tolerances, which is a great thing. The end gears NOT being nylon was an awesome upgrade. I recently installed a QCTP because I got really tired at having to shim up the cutters - something which should come included. Also, the cross slide/boss problem is an issue, but not insurmountable. I am overall pleased with the presentation and usefulness of the tool and have (since June) put it to use on several house projects (we own a completely custom home so nothing is standard) that without it, I would be at a loss. I think that lathes are, in general, the grandfather of all machine tools and for any DIYer, essential.
The variable speed capability is a huge deal for me, and one that really pushed this model over the top. Overall, I am pleased with the machine.
Nice little hobby machine, but for thousand bucks, a T-slot should be STANDARD on the compound slide for quick tool post. Please re-design.
