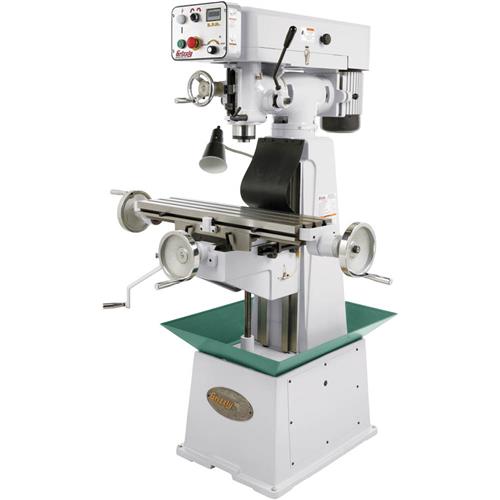

Grizzly G0678 - 8" x 30" Variable-Speed Vertical Mill
click to zoom
Free shipping within the Contiguous United States.
Sales of this outlet item are limited to quantity on hand.
- Electronic variable spindle speed control
- Reversing switch
- Adjustable travel stops on X & Y
- Fold-up safety handles
- One-shot lubrication
- Tilting head
- Turret style column
- Fine down feed on quill
- Dovetail ways to ensure table movement accuracy
- Motor: 1-1/2 HP, 220V, 3-phase
- Power source: 220V, single-phase, 60Hz
- Spindle taper: R-8
- Spindle travel: 3-1/2"
- Table size: 8" x 30"
- Table travel (longitudinal): 18"
- Table travel (cross): 7-3/4"
- Knee travel (vertical): 17-3/4"
- Max. dist. spindle to table: 20"
- Turret or column swivel: 360°
- T-slots: Three 9/16" slots, 2-3/16" on center
- Range of speeds: 200 to 2250 RPM
- Number of spindle speeds: Variable
- Overall height: 67"
- Approximate shipping weight: 966 lbs.
