Grizzly | Model: G0656W
8" x 72" Jointer with Mobile Base

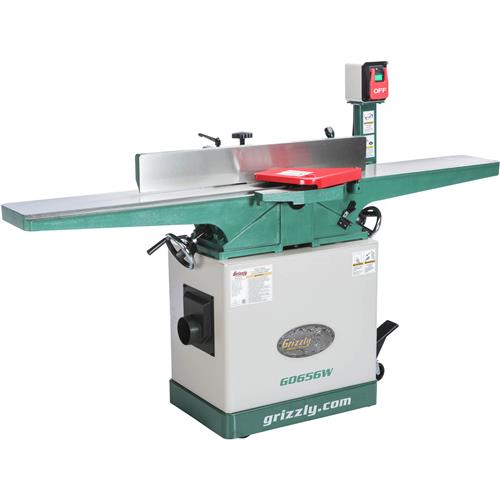

Grizzly G0656W - 8" x 72" Jointer with Mobile Base
|Missouri||Temporarily Out of Stock|
|Washington||Temporarily Out of Stock|
This 8" Jointer has all the features you want for precision jointing applications and ease of use. For precision jointing, we started with a six foot, cast iron bed and added positive handwheel adjustment for both the infeed and outfeed tables. A built-in mobile base, center-mounted fence with lateral rack-and-pinion control, and a pedestal-mounted switch all combine to make this jointer one of the best you'll find anywhere.
- Motor: 3 HP, 240V single-phase, TEFC, 3450 RPM
- Amps: 12A
- Precision-ground cast iron table size: 73-1/2" x 9-3/8" x 2"
- Cutterhead knives: 4 HSS, 8-1/16" x 3/4" x 1/8"
- Cutterhead speed: 5350 RPM
- Cutterhead diameter: 3"
- Maximum depth of cut: 1/8"
- Maximum rabbeting depth: 1/2"
- Cuts per minute: 21,400
- Fence size: 35"L x 5"H
- Approximate shipping weight: 518 lb.
- Beds slide on dovetailed ways
- Shielded and lubricated bearings
- Built-in mobile base
- Handwheel infeed, outfeed table adjustment
- Heavy-duty center-mounted fence
- Handwheel controlled rank-and-pinion fence adjustment
- Built-in dust chute and 4" dust port
- Rabbeting table
- Easy to reach pedestal-mounted switch
