Grizzly   |  Model: G0811
9" x 16" Metal-Cutting Bandsaw
Price: $2,395.00
Recently Added ×
You May Also Like ×

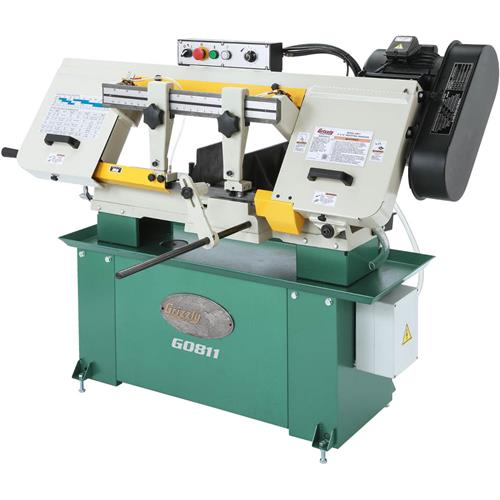

Grizzly G0811 - 9" x 16" Metal-Cutting Bandsaw

click to zoom

See this item in our 2016 Main Catalog!
600

Showroom Availability

Missouri Temporarily Out of Stock
Washington Temporarily Out of Stock
Showroom Pickup
Take your metal shop to the next level with our newest in a growing line of metal-cutting bandsaws. With a 31" x 6-1/2" table, maximum cutting capacities of 9" round stock and 5" x 16" rectangular stock (at 90°), and four blade speeds from 114–377 FPM, this dynamo can handle anything you throw at it. The quick-positioning vise with a maximum opening of 16", 10-liter coolant system, and variable-speed hydraulic downfeed controls, give you more precision, more efficiency, and more machine!

Specifications:

  • Motor: 1-1/2 HP, 220V, 1720 RPM, 11.5A
  • Included blade size: 114-1/2" x 1"
  • Blade speeds: 114, 196, 288, 377 FPM
  • Cutting capacities:
    90° Round 9"
    90° Rectangular 5" x 16"
    45° Round 9"
    45° Rectangular 8" x 9-1/2"
  • Vise jaw height: 5-1/8"
  • Max. vise opening: 16"
  • Table size: 31" L x 6-1/2" W
  • Floor to table height: 26-1/8"
  • Coolant capacity: 10 liters
  • Overall size: 62-1/2" L x 22-1/2" W x 45-1/2" H
  • Base footprint: 38" x 17-1/2"
  • Approximate shipping weight: 690 lbs.
Features:
  • Centralized control panel on top of saw bow
  • Coolant system with 10-liter capacity
  • Heavy-duty, precision-ground, cast iron table
  • Hydraulic downfeed control
  • Quick-positioning vise
  • Sliding cutter depth gauge
  • Handwheel blade tensioner
  • Adjustable blade guides
  • One-piece saw bow
  • Easy-access to belt drive for changing blade speed
  • Emergency stop button and magnetic safety switch
