Bison   |  SKU: T10414  |  Model: 7-862-0512
5-C Collet Chuck D1-5
Price: $695.00
Recently Added ×
You May Also Like

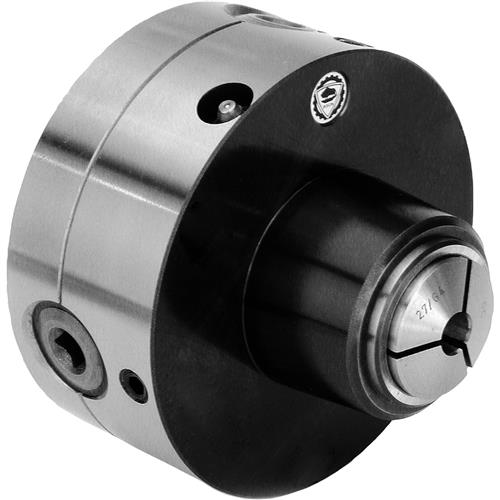

Bison 7-862-0512 - 5-C Collet Chuck D1-5

click to zoom

tap to zoom

See this item in our 2018 Main Catalog!
Shipping Chart Alternate Text
SKU: T10414
Model: 7-862-0512
Alternate Text
Buy Now!
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Monthly payments as low as . Learn More
We are proud to offer Bison Lathe chucks. This well respected brand of chucks has been the long accepted standard for high quality European work holding technology.

These 5-C collet chucks are made of high quality steel forgings and have a concentricity of 0.0004" (four ten-thousandths of an inch). Simple key operated scroll provides uniform, distortion free clamping and low collet cycle times. All 5-C collets from 3/64" to 1-1/8" can be used.

  • D1-5
  • 15 lbs.
Show More...

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

1 Customer Review (4 out of 5 stars): Sign in to write a review

Skip D
Pretty Good but with caveat 2/11/2018

The shipment apparently got lost in the UPS holiday traffic. Not Grizzly's fault. Grizzly stuck with me and after some time, got a replacement out to me. When it did arrive, I mounted it on my Grizzly 4003G lathe with Grizzly collets. Initially I was disappointed since it showed .003 Out of Round. At the better end of 3 jaw territory. So I indexed the chuck to the spindle and turned the inside of the chuck where the collet sits (preserving the angle of what appeared to be about 10*, looks kind of like the ID of the outer race of a taper bearing) and was able to get to .0005 out of round. I'm happy with that. If you are capable of this minor machine operation, then you will probably be happy with the Collet Chuck. I don't know if the problem was from the manufacturing process or the spindle/chuck interface, but it is corrected now and works fine and repeatable. If you don't understand this description, then this might not be the chuck for you. .
