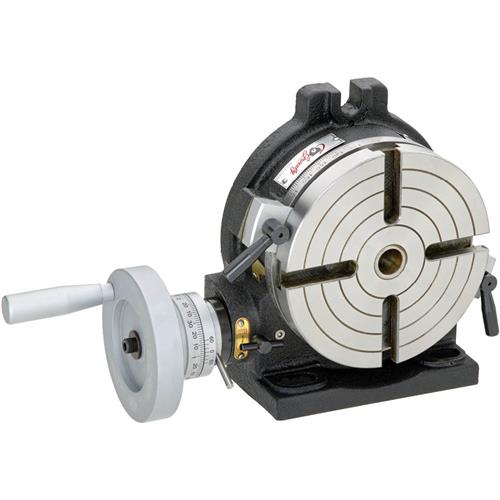

Combination Rotary Table - 6"

click to zoom

    See this item in our 2015 Annual Catalog!
    SKU: G1049
    MPN: G1049
    Showroom Pickup
    Use on milling machines for circular cutting, angle setting, boring and spot facing. Table surface and rotating parts are ground for smooth operation. Table is a solid Meehanite casting offering stability and assured accuracy. Ratio on all models is 90-to-1 or 4 degrees per hand-wheel revolution.

    Specifications:

    • Size: 6"
    • Center Hole: MT #2
    • Slots: 4
    • Table height in horizontal position: 3-3/16"
    • Table height in vertical position: 6-7/8"
    • Approx. weight: 27 lbs.

    :

    :
