Grizzly   |  Model: G4015Z
Combo Lathe/Mill
Price: $1,450.00
Recently Added ×
You May Also Like

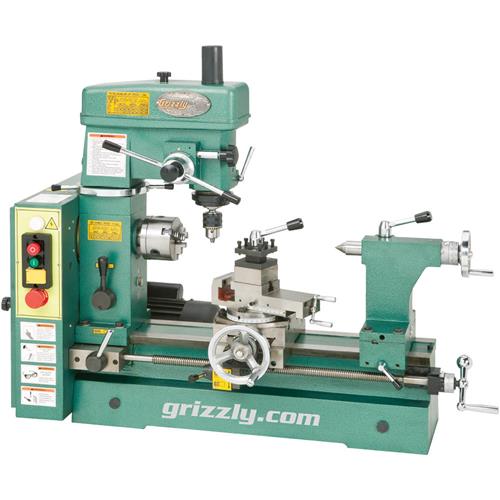

Grizzly G4015Z - Combo Lathe/Mill

click to zoom

See this item in our 2017 Main Catalog!
538
Showroom Pickup
We took our basic combination Metal Lathe/Milling Machine and increased its capacity and usability. Start with a lathe spindle bore of 3/4" and a longer bed. Then added more change gears, inch-cut lead screws, a 4" 3-jaw chuck, reversing switch and so much more. This is an excellent machine for anyone, from the home hobbyist to the seasoned machinist. You get a lot of machine in a very small package with all the features you need for just about any job!

Features:

  • T-slots in cross slide
  • Cuts inch & metric threads
  • Turret tool post
  • 4" 3-jaw chuck
  • Tailstock offsets 1/2"
  • Built-in vise

    Specifications:

  • Swing over bed: 16-1/2"
  • Swing over saddle: 11-1/2"
  • Distance between centers: 19-3/16"
  • Spindle taper: MT #3
  • Mill drill spindle taper: MT #3
  • Drawbar: 3/8" - 16 TPI
  • Tailstock barrel travel: 1-1/2"
  • Cross slide travel: 4-1/2"
  • Cross-slide mill table T-slots: 7/16" T-slots, spaced 3.54" (90mm) apart on centers
  • Lathe max tool size: 1/2"
  • Number of Mill/Drill speeds: 14
  • Speed range: 135, 175, 240, 295, 315, 380, 390, 490, 505, 635, 695, 900, 1055, 1370 RPM
  • Number of Lathe speeds: 7
  • Lathe speed range: 185, 330, 405, 535, 680, 955, 1455 RPM
  • Range of threads (inches): 8 - 120 TPI in 27 steps (Gear changes required)
  • Range of threads (metric): 18 @ 0.2 - 3.0 mm
  • Motor size (single phase 110V): 3/4 H.P.
  • Shipping weight approximate: 475 lbs.

    Standard Equipment:

  • 4" 3-jaw chuck
  • 1/2" drill chuck
  • MT#3 chuck arbor
  • 2 dead centers
  • Change gears
  • 5" backplate
  • 9-1/2" face plate
  • Accessories and Related Items: View All

    You May Also Like:

    Customers who purchased this item also purchased:

    2 Customer Reviews (4.5 out of 5 stars): Sign in to write a review

    Excellent first machine!
    5/ 5stars

    I owned mine for 4 years and never had an issue with it. It is powerful and accurate with many features. I did upgrade to a 3" milling vise and that was it. My only wish for it was I would have liked a steady rest to come with it. The reason I ended up selling it was my projects got larger and the spindle and chuck diameter are 7/8" and I needed one with a larger opening. Other than that, it never missed a beat and was a handy, versatile machine.

    Good but not great
    4/ 5stars

    I said I would recommend the machine but only with certain reservations. If you need a lathe and a mill, you need two separate machines. If you are limited in funds or limited in space, this machine is a good compromise.

    I found that the locking collar for the milling head does not hold the head in place sufficiently. The lathe works better than the mill, but neither is optimal. Set up time is excessive since it frequently happens that a project requires both the lathe and the mill.

    The machine suffers from the same syndrome and the "Shopsmith" When you try to make one machine to two different things, you wind up doing neither thing well. Check Craigslist listings for Shopsmith. People are giving them away.

    I think a good alternative is the 10 x 22 lathe and a separate bench mill. No reason to go anywhere but "Grizzly" for those machines.
