G1054 Dividing Head - BS-1
Your Price:**$439.95
Accessories and Related Items:

G1075 52 pc. Clamping Kit - 3/8" Bolt Size
$42.95
G7154 Premium Milling Vise - 5"
$164.95
G1646 12 pc. Precision R-8 Collet Set
$73.95
See all...

Description

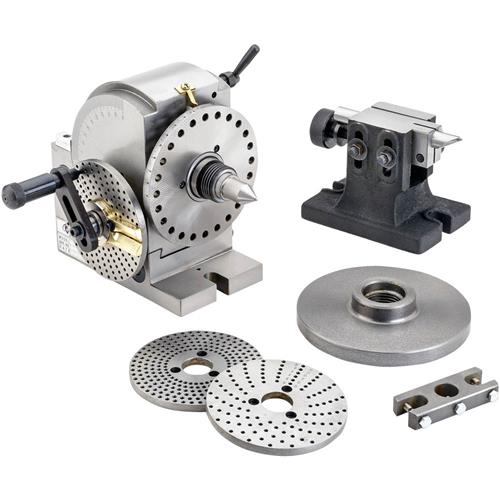

These high quality dividing heads are made with demanding care for precision gear-cutting, sharpening milling cutters, reamers, etc. Dividing heads come complete with 3 dividing plates, 1 tailstock, 1 chuck back plate, 1 center-dog and 1 center. Thread on nose 1-1/2" x 8 TPI. Ratio: 40:1

Specifications:

  • Type: BS-1
  • Overall Width: 8-1/2"
  • Overall height: 9"
  • Center (head only): 4-7/8"
  • Base size: 4-1/4" x 8"
  • Weight: 71 lbs.
  • Taper: BS-9
