Grizzly   |  Model: G1053
Dividing Head - Type BS-0
Price: $399.95
Recently Added ×
You May Also Like
(1)

Grizzly G1053 - Dividing Head - Type BS-0

click to zoom

tap to zoom

See this item in our 2017 Main Catalog!
636
Attention California Customers
 WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to:
www.P65Warnings.ca.gov
Buy Now!
Price:
Freight:  Freight
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More

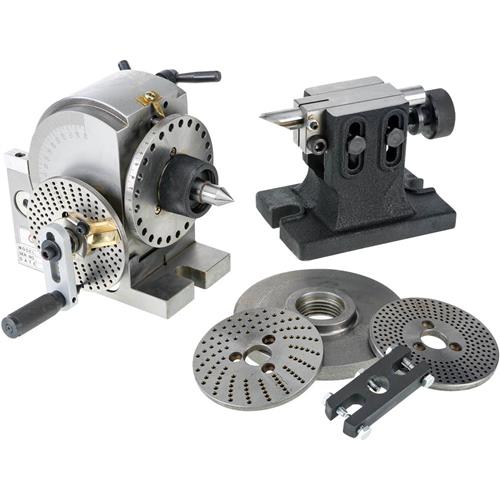

These high quality dividing heads are made with demanding care for precision gear-cutting, sharpening milling cutters, reamers, etc. Dividing heads come complete with 3 dividing plates, 1 tailstock, 1 chuck back plate, 1 center-dog and 1 center. Thread on nose 1-1/2" x 8 TPI. Ratio: 40:1

Specifications:

  • Type: BS-0
  • Overall Width: 7-1/4"
  • Overall height: 7"
  • Center (head only): 3-3/4"
  • Base size: 3-1/2" x 6-1/2"
  • Weight: 42 lbs.
  • Taper: BS-7
Show More...

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

1 Customer Review (5 out of 5 stars): Sign in to write a review

Decent Precision
5/ 5stars

I bought this to cut gears and so far am happy with the quality. I did have to strip it down completely to clean shipping grease off, but it cleaned up really nice. You will also want to take some time adjusting the backlash and the bearing preload, but once that is done, I find it very square, smooth and low run out. The sector arms are a bit stiff to work with, and I may make new ones, but everything else is smooth, once you clean it up and adjust. Mostly, I like the accuracy and squareness.
