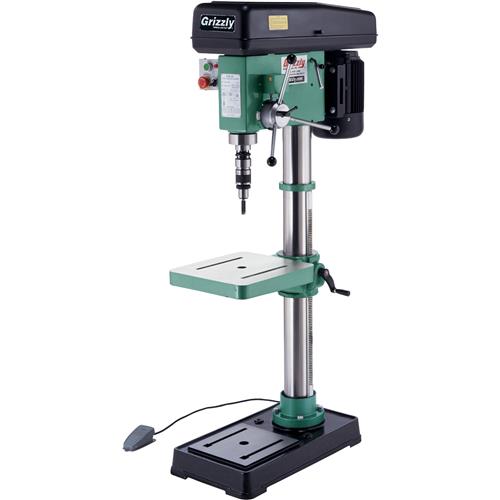

G0521 Drilling/Tapping Machine

Drilling/Tapping Machine

See larger image and other views
Price:$1,150.00
Freight:*$146.50
Your Price:**$1,296.50
Add to Cabana Add To CabanaWhat's This?
Accessories:

H6238 Drill Press Roller Supports
$26.95
G1076 52 pc. Clamping Kit - 1/2" Bolt Size
$34.95
G7154 Premium Milling Vise - 5"
$139.95
See all accessories...
Customers who purchased this item also purchased:

H2564 Forstner Bit - 2-1/16"
$14.95
G1076 52 pc. Clamping Kit - 1/2" Bolt Size
$34.95
G1071 Oscillating Spindle Sander
$595.00
Description
This is a sophisticated Tapping Machine with all the features you'd expect, like auto-reverse, precision collet set for taps, foot pedal control, massive construction and 2 HP of brute force! It also is a precision drill press, too! It has nine spindle speeds, a swing of 18" and 5-1/8" of spindle stroke. Without a doubt, this is a great buy all around.

Specifications:

  • Motor size: 2 HP, 3-phase
  • Voltage: 220V
  • Switch: Reversing
  • Overall height: 61-1/2"
  • Spindle travel: 5-1/8"
  • Number of speeds: 9
  • Spindle taper: MT#3
  • Range of speeds: 190 - 2250 RPM
  • Swing: 18"
  • Max. distance spindle to table: 29"
  • Max. distance spindle to base: 38-7/8"
  • Tapping capacity: 7/8"
  • Collet sizes for taps: 1/4", 5/16", 3/8", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16" & 7/8"
  • Table size: 13-5/8" x 14-5/16"
  • Head swivel: 360º
  • Drilling capacity: 1" in Mild Steel
  • Approximate shipping weight: 452 lbs.


Grizzly Catalog See pages 119, 274, and 651 of our 2008 Grizzly Catalog!
Metalworking Catalog See page 17 of our 2008 Metalworking Catalog!
Christmas Catalog See page 24 of our 2008 Christmas Catalog!
