Grizzly   |  Model: G0794
Floor Drill Press with Laser and DRO
Price: $574.94
Recently Added ×
You May Also Like
(16)

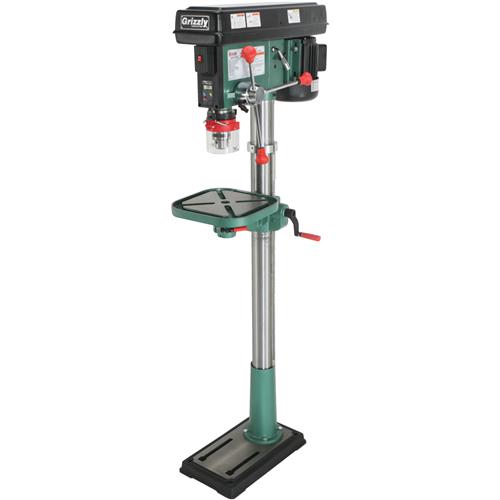

Grizzly G0794 - Floor Drill Press with Laser and DRO

Buy Now!
Price:
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
This 14" Heavy-Duty Floor-Model Drill Press features a digital spindle travel readout and laser pin-point accuracy for quickly aligning the workpiece to the drill entry point.

Specifications:

  • Motor: 3/4 HP, 110V, single-phase, 9A
  • Swing: 14"
  • Drill chuck: 1/64"–5/8"
  • Drilling capacity: 3/4" steel
  • Spindle travel: 3-1/4"
  • Spindle taper: MT#2
  • Number of speeds: 12 (140, 260, 320, 380, 480, 540, 980, 1160, 1510, 1650, 2180, and 3050 RPM)
  • Quill flange/collar dia: 2.595"
  • Precision-ground cast iron table
  • Table size: 11-3/8" x 11-3/8"
  • Table swing: 360º
  • Table tilt: 90 degrees left and right
  • T-slot width: 5/8"
  • Footprint: 18" x 11"
  • Overall height: 64"
  • Approximate shipping weight: 171 lbs.
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

16 Customer Reviews (4.8 out of 5 stars): Sign in to write a review

Charlie B
3/23/2018

There were casting flaws in the tabe consisting of slag deposts preventing the T-Slot nuts fro sliding in all slots. Also the deposts were extensive in th outer tray whcih I removed, but it looked terrible, so I painted it. No quality control on it, appearently.

Works well except DRO is to small to see and the laser IS USELESS 2/26/2018

Bill G
Wonderful 1/25/2018

The drill press was easy to put together, the laser could be a little stronger, but it is quiet and plenty of power with 12 speeds.

powerful drill 11/20/2017

great power with smooth operations. the drill is extremely quiet even with a heavy load. I was using a 3-1/8" forstner bit on pine logs and the drill plowed right through.

Mark C
Oustanding product. 9/12/2017

Excellent tool. Can't believe I've gotten by for years without one and this was "the right one" for the right price. Easy to assemble, easy to use.

James J
Great machine with a great price 8/4/2017

First time buyer and couldn't believe the quality for the price I paid.

Works great 6/2/2017

Easy to set up and works very well. Instructions were clear I've been very pleased.

Dale N
5/24/2017

Works just as advertised, Great value. The only concrete is it lacks a light.

Greg F
Save some money and get the G7946 5/14/2017

The mechanical aspects of the press are excellent but the laser and dro are useless. The laser will not hold adjustment due to mount and the dro is dim - no backlight

Nice drill, w/uneeded stuff 2/17/2017

This drill is ok. I think the laser on it is worthless and the depth gauge thing is not worth anything either. I like the adjustable table but it is not very stable when moving up and down. If I new this when I ordered it, I would have went with a higher end model without the laser and depth gauge. If you need a drill press, look at the better ones.

Pleased 1/26/2017

Works great, accurate, and easy to put together. The speeds are very easy to adjust.

Victor
Fantastic Value for the Money!!! 9/22/2015

Excellent addition to my shop. This makes the 10th Grizzly power tool I own. Don't think I would purchase any other brand. Would highly recommend.
