Grizzly   |  Model: G0454
20" Planer
Price: $1,495.00
Recently Added ×
You May Also Like
(10)

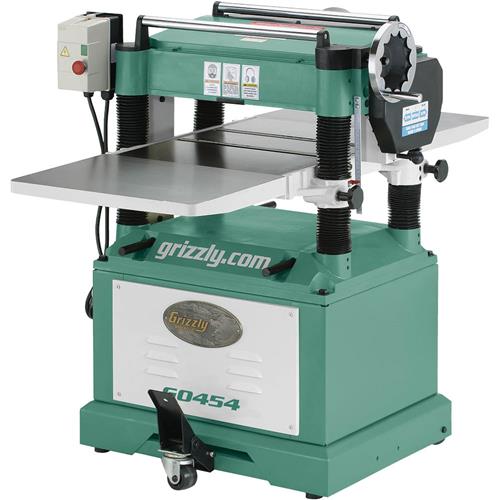

Grizzly G0454 - 20" Planer

Buy Now!
Price:
Freight:  Freight
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
Put this 20" Planer in your shop without breaking the bank. Solid cast iron and steel construction and large planing capacity make this planer a true heavyweight. However, with a foot-operated caster system, you won't need to manhandle this planer around your shop. You'll also appreciate the 55-1/2" long precision-ground table, 5 HP motor and the two-speed gear box for maximum versatility. CSA certified meeting CAN/CSA C22.2 #71.2-08 and UL 987 standards!

Features:

  • Built-in mobile base
  • Precision-ground cast-iron table and wings
  • Board return rollers
  • Adjustable bed rollers
  • Magnetic switch with thermal overload protection
  • Four-column support with table locks
  • Two-speed automatic board feed
  • Includes 5" dust port
  • Heavy-duty cast-iron construction

Specifications:

  • Motor: 5 HP, 240V, single-phase, 19A
  • Maximum cutting width: 20"
  • Maximum cutting height: 8"
  • Minimum stock thickness: 3/16"
  • Minimum stock length: 8"
  • Maximum cutting depth: 1/8"
  • Feed rate: 16 FPM and 20 FPM
  • Cutterhead diameter: 3-1/8"
  • Number of knives: 4 HSS
  • Cutterhead speed: 4800 RPM
  • Feed rolls: solid serrated steel
  • Table size: 20" x 25-3/4" (20" x 55-1/2" with extension)
  • Overall dimensions: 55-1/2"L x 39-1/2"W x 45-7/8"H
  • Approximate shipping weight: 920 lbs.
Show More...

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

10 Customer Reviews (5 out of 5 stars): Sign in to write a review

5/ 5stars

Machine arrived in good shape and the setup directions were clear and complete.
Planer worked well right from the start.

Basic machine seams to be ok
5/ 5stars

My past experience with Grizzly tools has been that they have poor an non functional on-off switches, this planer on- off is proving to be the same old thing ; did not work at all out of the crate.Took the cover off and bent the linkage and it worked a couple times now it won't turn on, at least it didn't start on fire like my Grizzly wood lathe did. Took three months to get it waiting on back order. So far not a great purchase, just ok.

Great planer
5/ 5stars

Great planer set up wasn't bad it was really close right out of the crate. I had a issue with the switch but customer service took care of it with no hassle and sent me a replacement with no issues.

Wow!
5/ 5stars

Wow, what more can I say about this awesome monster.

Performs as expected
5/ 5stars

Great Planer
5/ 5stars

This is a great planer and I highly recommend it.

A VERY GOOD MACHINE
5/ 5stars

THE BEST MACHINE THAT I HAVE BOUGHT IN SEVERAL YEARS

5/ 5stars

It is a very good, well built machine, but we are still having trouble with the safety shut off. We already got a replacement switch cover, but it doesn't allow shut off after it is running either. There is an alingment problem, I assume. I will have call and order a whole new switch! Bill Crone 765-412-7933

5/ 5stars

So far so good been a solid machine so far, however waiting over 4 months to get it was not good

Great planer
5/ 5stars

I purchased in 2008, This planer is great. The only thing i would change is the dust collection port is left handed only, not a huge deal but should offer in both directions.
