G8748 Hand Tapping Machine

Hand Tapping Machine

See larger image and other views
Your Price:**$74.95
Add to Cabana Add To CabanaWhat's This?
Customers who purchased this item also purchased:

G3787 Magnifying Tweezers
$3.95
Bookmark and Share
Description

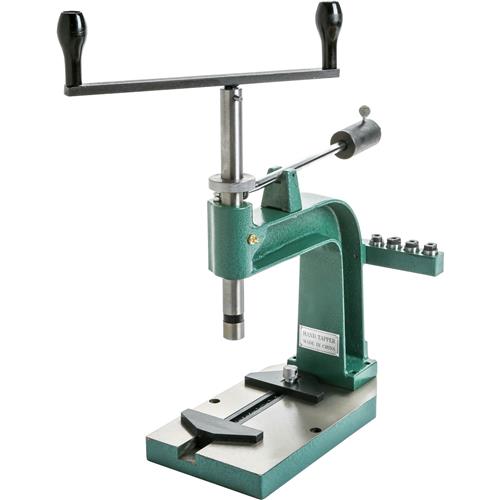

Our G8748 Hand Tapping Machine provides stability, precision and sensitivity to the hand tapping process. The cast iron construction of the base and over-arm gives a rigid setup that resists tool breakage. Precision ground surfaces on the base and hardened spindle means perpendicular perfection; no more off-axis tapped holes. The counter-balanced spindle allows far more sensitivity than an ordinary tap handle.

Other features include: quick setting work holder, 9 tap holders that snap-lock into spindle, rack for tap holders, adjustable height collar and off-set handles for quick return. Can be bolted down to use as a tapping station! Collet sizes include: #6, #8, #10, 1/4", 5/16", 7/16", 3/8", 1/2" and 5/8".

Specifications:

  • Overall dimensions: 22-1/2" x 12-1/2" x 14"
  • Throat capacity: 7-3/8"
  • Height capacity: 7-7/8"
  • Table size: 6-1/2" x 12-1/2"
  • Work holder maximum opening: 6"
  • Approx. Shipping weight: 45 lbs.
