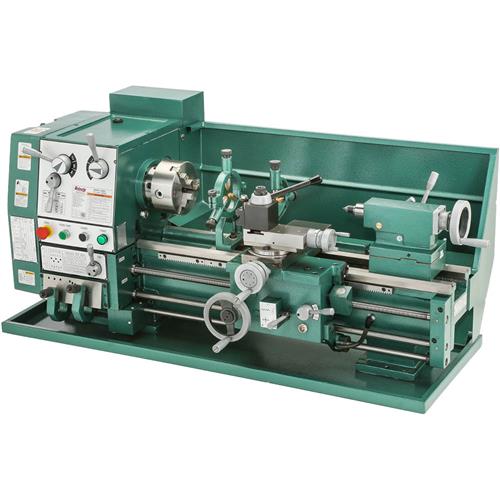

Grizzly G4002 - 12" x 24" Gear-Head, Cam Lock Spindle, Gap Bed Lathe

Model:G4002
Model: G4002
Buy Now!
Price:
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
This metal lathe is an incredible value. Produced with precision slides and ways, the G4002 will keep up with the most demanding machining job!

Features:

  • Removable gap bed allows turnings up to 17" in diameter
  • Nine spindle speeds - ranging from 70 to 1400 RPM
  • Easy-to-use lever controls
  • Hardened and ground cast iron bed
  • Cuts 4-112 Standard TPI and 0.2-4.5 Metric
  • Full length splash guard
  • On/off/reverse switch on carriage

Standard Equipment:

  • 6" 3-Jaw chuck w/2 sets of jaws
  • 8" 4-Jaw chuck w/reversible jaws
  • 10" Faceplate
  • Steady rest
  • Follow rest
  • Quick-change tool post w/holder
  • 4-Piece insert tool holder set
  • Set of seven change gears
  • Dead center MT#3 HSS tip
  • Dead center MT#3 carbide tip
  • Live center MT#3
  • 1/2" Drill chuck w/MT#3 arbor
  • Spindle sleeve MT#5/MT#3
  • Oil can
  • Toolbox

Specifications:

  • Swing over bed: 12"
  • Swing over gap: 17"
  • Swing over cross slide: 7"
  • Distance between centers: 24"
  • Bed width: 7-1/4"
  • Spindle bore: 1.417" (36mm)
  • Taper of spindle bore: MT#5
  • Spindle: Camlock D1-4
  • Cross slide travel: 6-1/4"
  • Cuts LH threads
  • Compound travel: 3-1/4"
  • Tailstock barrel taper: MT#3
  • Tailstock barrel travel: 4"
  • Diameter of tailstock barrel: 1-9/16"
  • Number of speeds: 9
  • Range of speeds: 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM
  • Motor: 2 HP, single-phase, 220 Volt, 8.5 amps, 60 Hz, 1725 RPM
  • Height w/o stand: 23"
  • Height w/ stand: 52"
  • Length w/ stand: 53"
  • Width of stand: 26"
  • Approx. shipping weight: 1004 lbs.
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

4 Customer Reviews (5 out of 5 stars): Sign in to write a review

Anonymous Reviewer
9/30/2018

Work is done with no problem with this G4002 Lathe.

Jeff
Great machine! 9/27/2018

I bought this about ten years ago. It is accurate, tough and has been very dependable. Prefer the 24" one over the 36" because that last 12" is never used and it fits in the allotted area best. It still looks like new, I keep it oiled and covered with a grill cover. Been a great investment.

Anonymous Reviewer
6/1/2017

I need a cross slide gib......is it still back ordered

Its a pretty good lathe........sure is strong........having trouble getting used to tapered gibs...........so far this lathe has done everything i asked it to do

On the mill I locked the rack on the column.......and ripped of the plastic shit off the quill up and down measurement and put on a micrometer caliper

mr. wonderful
Great machine for the money 4/22/2016

For the price, this is a GREAT deal. Worked perfect right out of the box. Did threading on it first day and it will do all my projects just fine. The spindle speeds could be a little more in line though, would like one between 70 and 200. But it's still a great machine. Great customer support.
