Grizzly   |  Model: G0788
18" x 60" Toolroom Lathe
Price: $9,995.00
Recently Added ×
You May Also Like

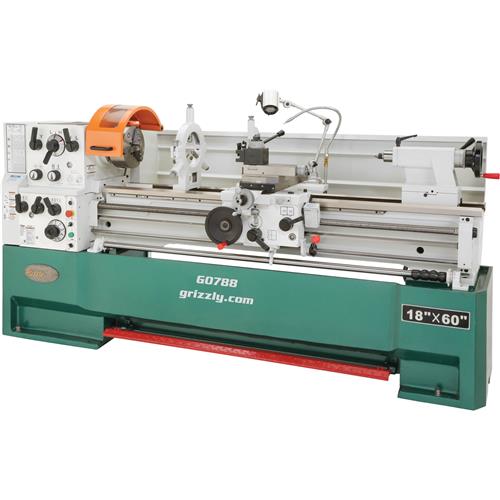

Grizzly G0788 - 18" x 60" Toolroom Lathe


click to zoom

tap to zoom

See this item in our 2018 Main Catalog!
Buy Now!
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Monthly payments as low as . Learn More
This burly lathe has been built with efficiency and precision in mind. Its massive one-piece, cast iron base, high-quality spindle bearings, and precision-ground, oil-bath lubricated gears keep vibration to a minimum even under heavy workloads, ensuring that every cut is exact. Offering a wide range of inch/metric threads and modular/diametral pitches, this lathe truly has what it takes to get the job done. It features a hardened and precision-ground Meehanite bed casting, coolant system, 4-way tool post, safety foot brake, safety chuck guard with microswitch shutoff, and one-shot lubrication. Standard equipment includes 10" 3-jaw universal chuck, 12" 4-jaw independent chuck, 14" faceplate, ball bearing steady and follow rests, and dead centers.


  • Universal quick-change gearbox for inch and metric threads, plus modular and diametral pitches
  • Hardened and precision-ground Meehanite bed casting
  • Quick-change and apron gears run in an oil bath
  • Safety chuck guard with microswitch shutoff
Standard Equipment:
  • 10" 3-jaw chuck with 2 sets of jaws
  • 12" 4-jaw independent chuck with reversible jaws
  • 14" Faceplate
  • Two MT#5 dead centers (1 carbide-tipped, 1 HSS)
  • MT#5 - MT#7 center sleeve
  • Follow rest
  • Steady rest with roller tips
  • Leveling pads
  • Quick-change tool post with 2 tool holders
  • Service tools
  • Toolbox
  • Swing over bed: 18"
  • Swing over gap: 27-1/8"
  • Swing over saddle: 10-3/4"
  • Distance between centers: 59-1/16"
  • Spindle nose: D1-6 Camlock
  • Spindle nose taper: MT#6
  • Spindle bore: 2-1/4"
  • Tailstock barrel taper: MT#4
  • Tailstock barrel travel: 5"
  • Cross slide travel: 11-1/4"
  • Compound travel: 5"
  • Max. tool bit size: 3/4"
  • Motor: 7-1/2 HP, 220V, 3-phase, 20A
  • Number of speeds: 12
  • Speed range: 25 - 2000 RPM
  • Width of bed: 11-13/16"
  • Range of threads (inches): 60 @ 2 - 112 TPI
  • Range of threads (metric): 41 @ 0.1 - 14mm
  • Cuts LH threads
  • Approximate shipping weight: 4663 lbs.
  • Please Note: Due to the size and weight of this machine, a flatbed truck or dock delivery is required. This cannot be delivered via the optional liftgate service.
