Grizzly   |  Model: G1140
6" x 80" Floor Model Edge Sander
Price: $855.00
Recently Added ×
You May Also Like

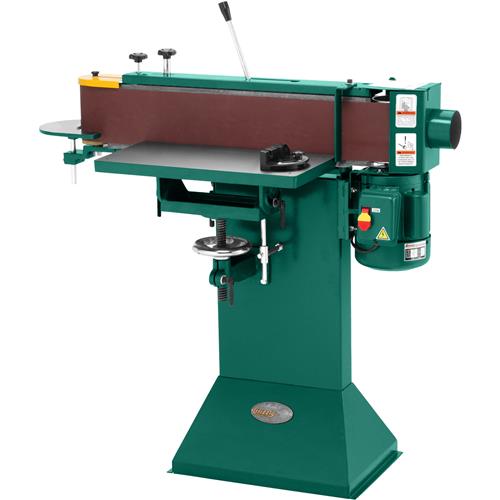

Grizzly G1140 - 6" x 80" Floor Model Edge Sander

Buy Now!
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Monthly payments as low as . Learn More
The Model G1140 offers nearly 30" of sanding surface - perfect for sanding door edges and long stock. Sand curved panels quickly and easily with the height-adjustable contoured support table. The Model G1140 can also be adjusted for horizontal face sanding. Includes adjustment knobs, quick belt release, ball bearing operation, and built-in dust hood.


  • Motor: 1-1/2 HP, TEFC, 110V/220V, single-phase, prewired 220V
  • 1725 RPM direct drive
  • 22" x 10-1/2" cast-iron table with miter block
  • Amps: 20A at 110V, 10A at 220V
  • Belt speed: 1800 FPM
  • +60° to -60° table tilt
  • 90° sanding belt tilt
  • 35" table height
  • Table travel: 6"
  • Sanding belt size: 6" x 80"
  • Powder-coated finish
  • Graphite-coated platen
  • Mechanical ON/OFF safety paddle switch
  • Shielded and lubricated bearings
  • Platen: 6-3/4" x 29-3/4"
  • End table: 4-1/4" x 8", adjustable vertically 3-1/2"
  • 4" Dust Port
  • Made in an ISO 9001 factory
  • Shipping weight: 252 lbs.
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

15 Customer Reviews (4.9 out of 5 stars): Sign in to write a review

Jeff A
Quality tool 3/7/2018

I recently purchased a G 1140 edge sander for my shop. It does every I need it to and more. I'd highly recommend this product to anyone.

Phil S

Bought this sander a few weeks ago. Needed to plan off almost a half inch off the bottom of a solid core door. Took less than a minute. perfectly square.

Lee D

I have had NO luck with this belt sander...........first .. there was missing parts(easily resolved). second.. I'm not a electrician so I had a pro switch the pre-wired from 220 to 110, bought and installed a 110 plug ....and wallah nothing! I've had 3 neighbors look at it and fiddle with it and still no power. It's to big to ship back....what am I to do with this 250 pound white elephant? HELP!

Rick W
As usual, a great machine at a great price 10/6/2017

I have had the sanded for about a month or so and I never figured I would use it as much as I have, but it is a nice addition to my shop, like just about everyone sanding is on the bottom of my list of wood working tasks, this sander really speeds up that task

I have about 10 Grizzly machines, and am very satisfied with every one of them. They have replaced the Powermatics and Deltas,not that they were worn out, just wanted larger capacity machines and the Grizzly machines have done a great job filling the extra capacity

Rob H
Just what I needed 9/5/2017

OK product but one issue 8/16/2017

I do like the tool but the dust guard interferes with the sanding motion so I can't use the dust collector when sanding long boards. My brother has an older one and it doesn't have this problem.

Bill D
A usefull, indispensible tool in my shop. 6/29/2017

I have looked at this sander for a while and finally dropped the hammer on it.....One of the best decisions I've made lately. I use this sander for countless tasks. I am very impressed with its power and the fit, finish, and precision of manufacture. Grizzly can always be trusted to deliver quality, usefulness, and value at a fair price. Another facet of Grizzly that I appreciate is their commitment to my satisfaction with my purchases.

Just what we needed in our shop. 6/21/2017

We were able to assemble the sander and adjust it quickly. Have been using it more than we thought we would.

Pete C

This is a fantastic sander, I use it a lot. Two or three times a day. It is everything the Grizzly catalogue says it is.
I also purchased the Grizzly 5HP tilting spindle Shaper last year and I use it a couple of hours every day, six days a week. Very smooth running Shaper with no runout at all . Good quality machine. I am very very happy with it and all the cutters I ordered with it as well.
Nice clean finish and no chatter marks whatsoever.
When I'm ready to jump up to a 16 inch Jointer, I will be looking at a Grizzly.
I also have a Grizzly 24 inch double drum sander that I bought used and it performs extremely well also. I am a believer !!! Pete Conlogue Chesapeake, Virginia

Joshua H
Pretty good 1/26/2017

I had it shipped and there were a few missing pieces. Also the on/off switch housing was broken so that sucked, but it's a nice machine, works well. I use it for only metal so I'm hard on it.
