Grizzly   |  Model: G0490
8" Jointer with Parallelogram Beds
Price: $1,314.00
Recently Added ×
You May Also Like

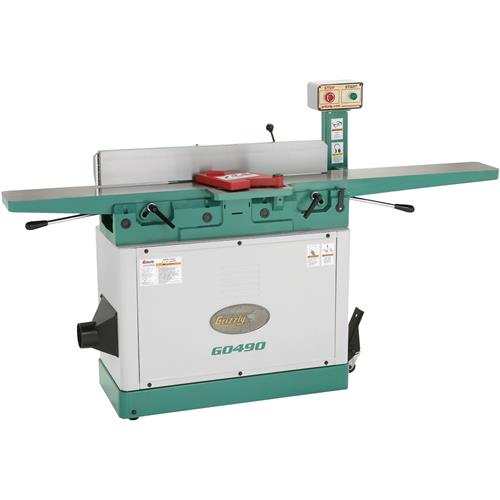

Grizzly G0490 - 8" Jointer with Parallelogram Beds

Model: G0490
Buy Now!
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Monthly payments as low as . Learn More
This 8" Jointer is sure to be popular among both professional and hobbyist woodworkers. The 76-3/8" table with extra-long infeed table and huge fence will make sure your stock is cut accurately. The easy-to-reach pedestal-mounted switch and lever-controlled table elevation make this a joy to operate. Our foot-pedal operated, built-in mobile base will allow you to keep this monster out of the way, yet still be easy to move when needed. We made the welded steel cabinet extra large for an incredibly stable platform. This machine will gobble up wood with ease and produce smooth, straight, and flat stock all day long. CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7 standards!


  • Motor: 3 HP, 240V, single-phase, 15A, TEFC, 3450 RPM
  • Total table size: 8" x 76-3/8"
  • Infeed table size: 8" x 43-3/8"
  • Cutterhead knives: 4 HSS, 8" x 3/4" x 1/8"
  • Cutterhead speed: 4800 RPM
  • Cutterhead diameter: 3-3/16"
  • Max. depth of cut: 1/8"
  • Max. rabbeting depth: 1/2"
  • Cuts per minute: 19,200
  • Deluxe cast iron fence size: 36" L x 1-1/4" W x 5" H
  • Approximate shipping weight: 562 lbs.


  • Shielded and lubricated bearings
  • Precision-ground cast-iron tables
  • Fully adjustable tables
  • Serpentine belt and pulleys
  • Easy-access lever-adjustable tables with height gauge
  • Heavy-duty center-mounted fence with angle gauge
  • Built-in dust chute with 4" port
  • Powder-coated paint
  • Pedestal mounted switch for convenience
  • Sturdy cabinet stand
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

7 Customer Reviews (4.7 out of 5 stars): Sign in to write a review

William P
Very Nice Machine! Poor quality control with factory calibration settings. 1/2/2018

I received this jointer about a month ago and overall it is a great machine. It's very solidly built and produces very good results. The only disappointment I have with the machine is that nearly all of the factory alignment and calibration settings were off due to most(almost all) of the bolts not being tight. Some of them were actually so loose that they could be turned without needing any tools. Even the spring in the blade guard was off and had to be adjusted and the bolt tightened so that the guard would go back into place after being pulled away from the fence. As a result, it took many hours to get the jointer set up and calibrated properly. If not for these issues, I would have given this jointer a 5-star rating.
Now that everything is set up properly, I think this jointer will be a great addition to my shop and expect it to be a very reliable machine.

mathew N

I had a 6inch grizzly jointer and replaced it with this 8inch. I love it and it works great

Mike P

We run a small, custom furniture shop. We already have your 17" band saw, 8" jointer, and flap sander. All are working well. Thank you!

Rick W
WOW 6/2/2017

I finally got the machine in the shop and set up all I can say is WOW it is a super smooth running machine and mills the wood like glass. Very quiet just a very well engineered machine

I wish I could say the same for UPS Express, never ran into to bigger liars, ended up wasting almost two days for delivery

Great tool 6/1/2017

Bought the g0490 and put the Byrd shelix head on it. What a machine!!! The wood comes out smooth and tear out free.

Very nice condition great service 5/10/2017
