Grizzly   |  Model: G0490W

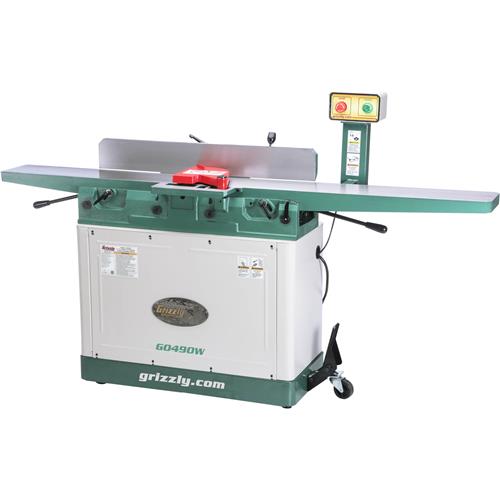

8" Jointer with Parallelogram Beds
Price: $1,025.00
Recently Added ×
You May Also Like
(10)

Grizzly G0490W - 8" Jointer with Parallelogram Beds

Model:G0490W
Buy Now!
Price:
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
This 8" Jointer is popular among both professional and hobbyist woodworkers. The 76-1/2" table with extra-long infeed table and the huge fence will make sure your stock is cut accurately. The easy to reach pedestal-mounted switch and lever-controlled table elevation make this a joy to operate. Our foot-pedal operated, built-in mobile base will allow you to keep this monster out of the way and still easily move it when needed. We made the welded steel cabinet oversized for an incredibly stable platform. This machine will gobble up wood with ease and produce smooth, straight, and flat stock all day long.

Specifications:

  • Motor: 3HP, 240V, single-phase, 12A, TEFC, 3450 RPM
  • Total table size: 8" x 76-1/2"
  • Cutterhead knives: 4 HSS, 8-1/16" x 3/4" x 1/8"
  • Cutterhead speed: 5350 RPM
  • Cutterhead diameter: 3"
  • Maximum depth of cut: 1/8"
  • Maximum rabbeting depth: 1/2"
  • Cuts per minute: 21,400
  • Deluxe cast iron fence size: 36"L x 1-1/4"W x 5"H
  • Approximate shipping weight: 562 lbs.
Features:
  • Shielded and lubricated bearings
  • Precision-ground cast iron tables
  • Fully adjustable tables
  • Poly-V Serpentine belt and pulleys
  • Easy access lever-adjustable tables with height gauge
  • Heavy-duty center-mounted fence with angle gauge
  • Built-in dust chute with 4" port
  • Powder-coated finished
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

10 Customer Reviews (4.9 out of 5 stars): Sign in to write a review

John S
1/26/2018

i Bought this a mouth ago. works like a champ. very quit,was easy to putt to gather. built to last great price

1/19/2018

This is an excellent machine! Between a friend and I we were able to place the bed assembly onto the base, this jointer is exceptionally heavy. The only adjustments I made were making the beds precisely co-planer. I also mounted the controls on the side of the base opposed to the tall mount it comes with, I just bored a couple of holes and used bolts, nuts, and lock washers. Lastly I replaced the power cord with a 15FT long cord. It works flawlessly and is a true beast, thanks Grizzly!

Tyler S
Perfect so far as I can tell. 1/5/2018

Beds were darn close the perfect right out of the crate, very impressed. The base cabinet came damaged and the grizzly customer support team made it right very quickly. Be sure to check the m edge of the fence for burrs that will scratch ever piece you joint, a quick file will take them off.

Edgar M
Great Product!! 7/17/2017

Absolutely amazing customer service! Product works amazing. Third Grizzly product and couldn't be happier. Only thing that made this purchase better was the Byrd tool segmented head which I ordered separately from Grizzly.

Jesse C
7/6/2017

I love this thing!!! Right out of the box it was set up so that I only had to make minor adjustments.

What is there not to like? 7/5/2017

What's there not to like? This jointer does it all. The machine is well built and will more than deliver what you need or expect. As an amateur woodworker, I build the usual suspects such as furniture, cabinets, wooden boats, and entry doors. The extra length for the bed is a decided advantage for door construction. The stock needs to be absolutely flat and square. This machine has the power and the bed.

6/2/2017

I am satisfied with the 8 inch jointer as it does everything I expected it to do. I am disapointed that I had to wait while it was on back order and when notified it was in and I ordered it the same jointer went on sale with the spiral head for only a few dollars more than I paid for the one on back order.

Great machine!!! 5/21/2017

I bought the 8" jointer to upgrade from a 6". Very happy with the machine. It's like night and day.

5/1/2017

I have has this planer for 2 years and like it. I work with a lot of large heave stock and the long bed makes material handling much easier. I would recommend the helical cutter head model over this one. you really have to slow down your feed rate to avoid ripples in the finish. My only gripe is that this is one tedious machine to set up, specially if you don't own a 4' machinist's straight edge. All in all it is a good solid machine that is capable of making exact 90* stock once set up properly.
