Grizzly   |  Model: G0762
Heavy-Duty Benchtop Mill/Drill with Variable-Speed and Power Feed
Price: $2,195.00
Recently Added ×
You May Also Like
(6)

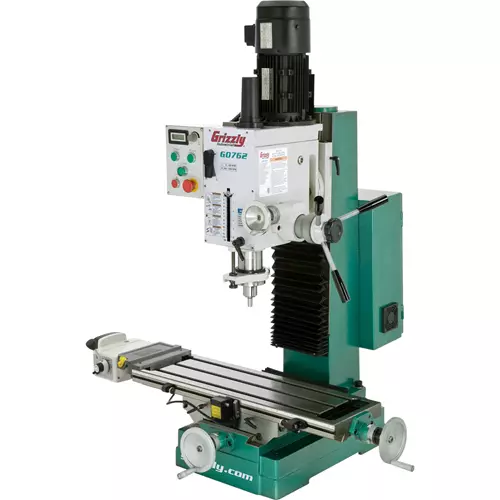

Grizzly G0762 - Heavy-Duty Benchtop Mill/Drill with Variable-Speed and Power Feed

Model:G0762
Model: G0762
Buy Now!
Price:
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
This Variable-Speed Mill/Drill is an ideal choice for slow-speed, high-torque requirements in shops operating on a 220V single-phase power supply. By utilizing a built-in Variable Frequency Drive (VFD), a 3-phase motor can be used instead of a single-phase motor, providing variable-speed control and superior torque at slow speeds. With most other machines, slow-speed motor operation reduces the motor fan’s ability to help dissipate heat, meaning that frequent operation at slow speeds will reduce the life of the motor. However, this machine is equipped with an independent high-CFM fan on top of the motor to keep it nice and cool all day long. What’s more, it has a digital display for spindle speed, longitudinal power feed, dovetail ways, and high-precision P5 spindle bearings.

Specifications:

  • Motor: 2 HP, 220V, 3-phase, 6.2A
  • Swing: 20-1/4"
  • Max. spindle-to-table: 18-1/8"
  • Table size: 9-1/2" x 31-1/2"
  • Table travel (X-, Y-Axis): 22", 7-1/2"
  • Head travel (Z-Axis): 13-3/4"
  • Spindle travel: 4-3/4"
  • Spindle speeds: Variable, 75–2500 RPM
  • Spindle taper: R-8
  • Head tilt: 45° left & right
  • Table T-slots: 1/2" wide, 3-1/8" OC
  • Overall size: 49-5/8" W x 61" H x 36-5/8" D
  • Base footprint: 17-3/4" W x 21-5/8" D
  • Approx. shipping weight: 732 lbs.

Features:

  • Variable frequency drive for 3-phase speed control with single-phase power
  • Longitudinal variable-speed power feed
  • High-precision P5 spindle bearings
  • Table is coolant-system ready
  • Dovetail ways, each with adjustable gibs and dual locks for accuracy
  • Coarse/fine spindle downfeed with stops
  • Independent high-CFM motor fan
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

6 Customer Reviews (5 out of 5 stars): Sign in to write a review

Darryl D
7/3/2018

I actually bought this machine before Grizzly offered this review section on their website. I've been using it for a few years, I bought it right after Grizzly started selling this model.
Great machine! I've done a lot of stuff from large to small. There is one thing incorrect in the description; 45 degrees tilt left or right. It will go 90 degrees CCW and can be used as a horizontal mill.
I installed a set of digitals on it X,Y and Z plus another one on the quill. Really cool and quite accurate.
Indicating the head in the Y plane can be a little time consuming (unbolt the head from the base, shim and repeat until indicated), but once it's done you won't have to do it again.

3/14/2018

Machine is solid and simple to assemble. We had it ready to run in about 1-2hrs. Good value in a small machine.

Troy A
2/14/2018

I purchased this mill 2 years ago and waited to review so I could speak from experience. This mill has been a great machine for me and have no regrets. I was a little leery about the variable speed but has turned out to be its greatest asset. From drilling 1 1/2 holes through 1/2 inch steel plate with no pilot hole (just to see if it could) to tapping 6-32 threads and everything in between it has never missed a beat. I have enjoyed the power feed that came with the machine, saves the arms. What you need to know: Tramming the nod is time consuming and for me required some shims but has held true. The hand crank to raise and lower the head is awkward at best and a real pain, so I made an adapter to use a 1/2 inch drill motor, works great. I bought a DRO early on and couldn't live without it now. Overall this is a great value and a great machine for me I cant imagine my shop without it.

Mark L
12/22/2017

I am new to metal working but wanted to get a mill that I could grow into. I completed my first project and was very happy with the G0762.

DOUGLAS R
Very happy with it !! 10/14/2017

I bought it to do rifle stock Work and it performs perfectly!!

Earl A
5/20/2017

Every thing that I wanted in a affordable milling machine. Exceeds all expectations. Variable speed is must have.
