Grizzly   |  Model: G2533
Heavy-Duty Motor 1 HP Single-Phase 3450 RPM TEFC 110V/220V
Price: $199.95
Recently Added ×
You May Also Like

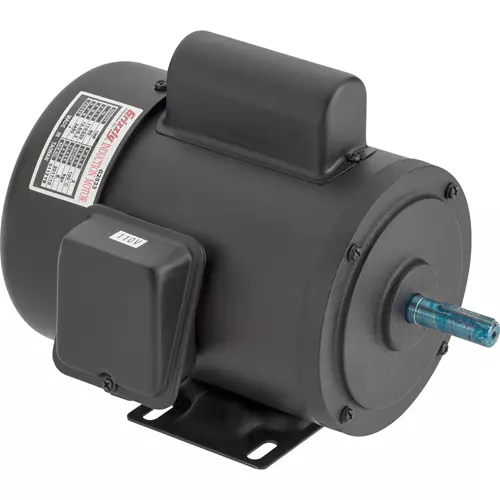

Grizzly G2533 - Heavy-Duty Motor 1 HP Single-Phase 3450 RPM TEFC 110V/220V


click to zoom

tap to zoom

See this item in our 2018 Main Catalog!
Buy Now!
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Monthly payments as low as . Learn More
Made to demanding specifications, these motors offer the same quality as the motors we install on our heavy-duty machines. All our motors are standard NEMA 56 frames and fit over 90% of the woodworking machinery on the market. If you have applications where dust, oil, chips or other foreign particles are the norm rather than the exception, you should use these Totally Enclosed Fan Cooled Motors (Enclosed). Motors are dual voltage (110/220V) capacitor start. They feature standard NEMA 56 frames, all ball bearing construction, reversible rotation, 5/8" shafts, and are rated for continuous duty. Not for air compressor use.


  • Type: Enclosed
  • Size: 1HP
  • RPM: 3450
  • AMPS @ 110V/220V: 12.6A/6.3A
  • Reversible rotation

Full 1 Year Warranty!

Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

16 Customer Reviews (4.9 out of 5 stars): Sign in to write a review


Very happy. It mounted right to the motor pivot plate. Able to make motor and pulley adjustments. Also purchased a pulley for my grizzly wood lathe and some starter drills that
have kept me happy. Thanks for the help.


Great replacement motor for my 50 year old Craftsmen saw. Easy installation.


The motor is a bolt on for my table saw motor replacement and works just fine. I am very happy with this product.


My Sears table saw motor died and my replacement motor was a Grizzly product. This new motor was ideal as it bolted right into the existing bolt holes. Am making saw dust again. Am more than happy. Frank H.

Chris R
Works great! 3/24/2018

Used this to replace the original motor on the 1969 Craftsman 113 series table saw I inherited from my father-in-law. Perfect match and installed easily. Saw runs like a champ now and vibration was greatly reduced. If this one last 49 years maybe my grandkids will be using this tablesaw someday!


I bought this motor to retrofit to a 20-year old exhaust fan in a greenhouse. With slight modifications to the mount, it fit and has operated as intended. It will be running in hot and dusty conditions for long hours during the growing. I expect it to perform well, and hopefully for many years.

And thank you for the prompt delivery!

Frank H

I finally got the chance to try this new motor out. It performed extremely well. Would recommend to anyone who is shopping for motors.

Mounted to vintage Craftsman Table Saw 7/6/2017

I have a late 50's or early 60's Craftsman saw (113.27610). The original craftsman motor started tripping the fuse, one of the windings had shorted so it was trash. The motor hangs off the back and this provides the belt tension. This motor mounted fine and I didn't need to drill any holes. I did need to buy shorter bolts for the bottom mount, and needed a 40 inch belt, though a 41 inch belt might have worked. The motor sits about an inch closer to the base, hence the need for a belt less than the standard 43" belt. This motor seems well built and works well.

Good Buy Decision 6/2/2017

Motor is mounted to my old Sears table saw, some 30 years old. The original motor bracket was removed and this motor bolted right up to the saw's base bracket. Couldn't be happier. It is a much better motor than the 30 year old model.

Great Motor! 6/2/2017

Replaced old open table saw motor- works great in dusty shop. quick delivery

Nice motor; exactly what I needed 5/20/2017

Used to replace the motor on my 1950's vintage Rockwell Delta Homecraft table saw.

Good value for the money. 1/27/2017

I was very hesitate to buy this and put it on a 50 year old craftsman jointer, I didn't care much for the country of origin but I must say in the short time I have had it in use I have no complaints, plenty of power, doesn't stall, even a full width cut on walnut, or ash.

Great replacement motor for an old Craftsman table saw 1/26/2017

I was looking for a motor to replace one that died on my old (30-35 years old) Craftsman table saw. Craftsman no longer makes this motor and the repair places would not take it as they said they did not have the parts to make repair. After searching the internet and comparing the Grizzly 1 hp 3450 rpm motor to local places, I found the cost was lower for the Grizzly motor (even including shipping) than I could buy it locally. The motor arrived in two days. I put the Grizzly motor on my old table saw and it has much more power than my old motor did and it is far heavier than the old motor. I have used the table saw on numerous occasions with the new Grizzly motor and it works just fine. I am very happy with the performance of this Grizzly motor and find it to be an excellent replacement for my old Craftsman motor and the cost was better than any other I found on the internet.

Excellent Motor 1/26/2017

This is the motor I needed for my Delta tablesaw when the original factory motor died after 50 years of use.
I like that this motor was easy to convert it to 220 volt operation. It starts smoothly and has plenty of power. It was delivered within a few days after I placed the order.
