Grizzly   |  Model: G0564
Oscillating Edge Sander 3 HP
Price: $2,075.00
Recently Added ×
You May Also Like

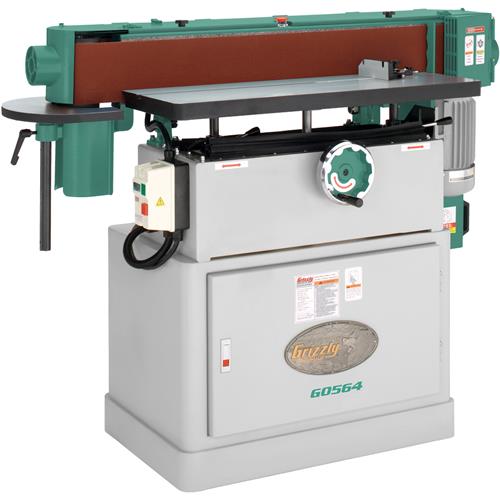

Grizzly G0564 - Oscillating Edge Sander 3 HP

Buy Now!
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Monthly payments as low as . Learn More

For all-around versatility in a sanding machine, you can’t beat our Oscillating Edge Sanders. Not only do you get a large sanding surface combined with an oscillating belt and a large precision-ground cast iron table for efficient edge-sanding, you also get three interchangeable spindle drums for contour sanding. The edge-sanding table is handwheel-controlled for vertical adjustment and angle sanding is much easier to manage since the sanding belt tilts instead of the table. You’ll agree—these Oscillating Edge Sanders are awesome! Also available in a smaller, 2 HP option as the model G0563.

CSA certified meeting CSA C22.2 #71.2-M89 and UL 987-6th standards!


  • T-Slot table & miter gauge
  • Two 4" dust ports
  • Quick-release belt tension lever
  • Graphite-coated platen
  • Oscillating sanding surfaces
  • Shielded & permanently lubricated ball bearings
  • Precision-ground cast iron tables


  • Motor: 3 HP, 240V, single-phase, 11A, 1725 RPM, TEFC
  • Table size: 35-1/2" x 12"
  • Table travel: 4"
  • Aux. table size: 10" x 11-1/2"
  • Aux. table travel: 10"
  • Sanding belt size: 6" x 108"
  • Sanding belt speed: 3150 FPM
  • Sanding belt oscillation stroke: 1/4"
  • Drive roller diameter: 7"
  • Idler roller diameter: 3-7/8"
  • Platen with graphite pad: 6-3/4" x 39-3/4"
  • Platen tilt: 0° through 90° (5° scale)
  • 3 spindle drums: 1-1/2", 2", 3" x 4-1/2" L
  • Approx. shipping weight: 597 lbs.
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

10 Customer Reviews (4.9 out of 5 stars): Sign in to write a review

Edge sander works very well! 7/19/2018

Sander arrived well grated and shrink-wrapped. There was not a single scratch or blemish (which is not that common for a UPS freight delivery). Fit and finish was quite good, only a couple of sharp edges on the spindle platen that needed a bit of touch up. The sander was usable right out of the box, no adjustment was needed. It runs quiet without any noticeable vibrations. Have used the sander for ~1 month now. So far it has worked flawlessly.

The sander does not have a provision to mount casters on the base. Since I mount all my equipment of leveling casters, I needed to modify the base a bit to attach casters.
Overall I am very satisfied. Fit and finish exceeded my expectation.

Ron L
Second Machine 5/6/2018

This is my second machine, and one of the most used machines in the shop. It's used for everything from angles sanding, to edge sanding, to surface sanding, to touch-up sanding...I don't know how anyone gets along without one of these, and Grizzly has the best one on the market for the quality vs. the price. Guaranteed, this will give you the tightest joint you'll get with any machine or tool you have in the Shop, if you have the right grit sand paper in it.

Jeff M
Outstanding sander 4/25/2018

I bought this about 2 months ago; it was back ordered for about 2 weeks. It is the best edge sander that I have had; period! It does a great job of not leaving obvious sanding lines in the wood. Would definitely recommend this if you are looking for an edge sander.

Oscillating edge sander 4/22/2018

No problem delivery, no problem set up, and worked right out of the box..... absolutely pleased.

Great 11/30/2017

Seems to be good quality. Tracks perfectly without any needed adjustments. I am happy with the purchase.

Thanks Grizzly; another great Affordable tool! 10/20/2017

I bought the 0564 edge sander at the september 2017 tent sale and love the way it sands cabinet door and drawer edges so smooth and straight so quickly; going to be a great time saver building furniture here at Plantation Creations! :) My shop is looking Greener all the time with a Grizzly band saw, table saw, edge sander, and G1066Z drum sander.

Large, heavy, and plenty of power 10/15/2017

My "shop" is just part of a two-car garage so I'm not sure if I should have chosen this over a drum sander. Of course they are completely different machines, however, it seemed the edge sander would offer more versatility. On the few times I've used it this has done a very good, QUICK job for the task at hand. It's a huge time saver compared to hand sanding, even with a RO machine. The machine is the heaviest one I own and is not simple to move once placed on a heavy duty mobile base. It can be done but for me it's best to park it somewhere so it only needs to be moved infrequently. Spindle sanding is convenient but I'll most likely pull out my benchtop spindle sander instead of firing up a 3hp machine.

Well built, works great 7/6/2017

I bought this sander to edge sand kitchen cabinet doors on a beaded inset frame. Sander made quick work of getting perfect margins/gaps. Used it for about 50 doors. Machine is heavy, so have fork lift to unload/move. My only issue is the off button on top of belt housing is sticky.


The sander arrived on time as promised. It appears to be of good quality. Very satisfied.

R. Caldwell - Crowley's Ridge Designers
Customer Review 1/1/2015

I've had this sander for about 4 months or so. I don't know how I ever got along without it. This is truly a fantastic machine. I highly recommend it!
