Grizzly   |  Model: G0687
Tool and Die Grinder
Price: $1,575.00
Recently Added ×
You May Also Like
(2)

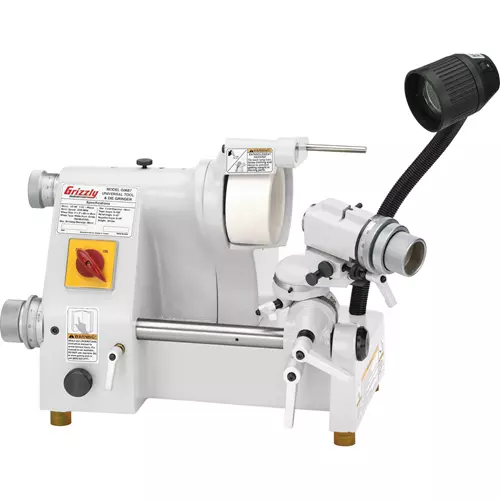

Grizzly G0687 - Tool and Die Grinder

Model:G0687

click to zoom

tap to zoom

See this item in our 2018 Main Catalog!
736
Model: G0687
Buy Now!
Price:
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
This feature-packed grinder is a must for any serious machine shop! Use it to form-grind tools, sharpen end mills & dress-up punches. It comes with a universal index head with 24 point positioning, 0° & 180° stop and silky smooth rotary motion. The head support gimbals to just about any imaginable position allowing maximum flexibility to grind those necessary relief angles. If all that wasn't enough, both the rail and spindle are micro-adjustable so you can dial in the precision you need! Includes 1/8", 3/16", 1/4", 3/8", and 1/2" collets.

SPECIFICATIONS:

  • 1/3 HP, 110V, single-phase, 3450 RPM motor
  • 5200 RPM spindle speed
  • 4" Type-6 grinding wheel
  • 24 point indexing
  • 0°—180­° swing stops
  • Collet style: U2
  • 1/8"—5/8"Collet capacity
  • 0°—180° Taper angle, 0°—45° Relief angle, 0°—26° Negative angle
  • Maximum grinding diameter: 25mm
  • 0.01mm resolution micro-adjustment
  • Diamond-tipped wheel dresser
  • Grinding wheel size: 4" x 2" x 20mm bore
  • Overall size: 12-1/2"L x 16-1/2"W x 18-1/2"H
  • Includes halogen work lamp
  • Includes 1/8", 3/16", 1/4", 3/8", and 1/2" collets
  • Approximate shipping weight: 121 lbs.
  • Show More... California Proposition 65 Warning

    Accessories and Related Items: View All

    You May Also Like:

    Customers who purchased this item also purchased:

    2 Customer Reviews (5 out of 5 stars): Sign in to write a review

    John C
    Decent product 3/30/2018

    I've used this machine on a number of end mills and drills and it does the job quite well. 30 seconds with a worn drill bit returns it to new condition. The wheel that comes with it is not suitable for carbide so if you are planning on using it for that purpose, get the diamond wheel. I suggest a grit higher than 200 for a good finish. Just like virtually any tool, this tool takes skill to use properly. Use a dust shield and dust mask as the dust from carbide can be rather irritating.

    Fred M
    A Gem Of A Machine 3/12/2018

    I bought this delightful and precision grinder to make special cutters for my shop. I bought all of the accessories, except for the metric collets and the drill sharpening fixture as I prefer to sharpen drills by hand. This machine is similar to the German Deckel, except that machine costs about ten times more than this one, and this machine is much better, because the upper quill allows you to dress the grinding wheel on the fly, without removing the work piece first. While the machine is really intended to grind single lip cutters, you can use it to grind the flutes of end mills and also grind forms on lathe tool bits. The instruction manual that came with the machine is poorly written and hard to understand, but because I learned years ago how to use this machine, working in my dad's mold making shop, I can grind all kinds of cutters without any problem. I think if the instructions were better, more tradesmen / craftsmen would realize how necessary this grinder is for a well equipped shop, either metal working or wood working. Fred M.
