South Bend   |  SKU: SB1007

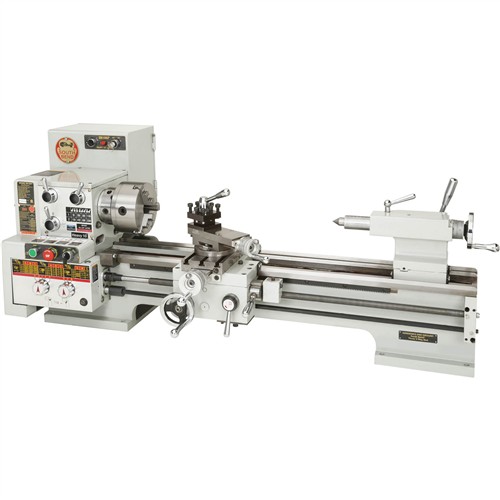

Heavy 10™ 10" x 30" Gearhead Lathe
Price: $7,500.00
Recently Added ×
You May Also Like ×

South Bend - Heavy 10™ 10" x 30" Gearhead Lathe

click to zoom

See this item in our 2016 Main Catalog!
615

Showroom Availability

Missouri In Stock
Washington Temporarily Out of Stock
Showroom Pickup
Through the years, no lathe has been as popular or iconic as a South Bend 10" lathe. This new Heavy 10 is a modern variation of our classic South Bend legend - esteemed throughout the world for being always reliable and exceptionally accurate. Not to be outdone, the SB1007 is a gearhead lathe packed with features and refinements usually found only on much larger, more expensive machines. With a 10-3/4" swing and 30" distance between centers, powered carriage and cross feeds, quick-change gearbox, all gear-head headstock, jog button, outboard spindle spider for gunsmithing, a D1-4 camlock spindle, precision German-made spindle bearings, and especially thick castings, this lathe is heavy enough to do a wide variety of jobs - yet light enough to be quick and responsive to the operator. Spindle speed is controlled via convenient headstock levers, offering an available range of 55-2200 RPM. A heavy-duty 3 HP Delta variable-frequency driver inverter ensures smooth, consistent torque at every speed from the 2 HP two speed 3-phase motor - without requiring a 3-phase power!

SPECIFICATIONS:

  • Swing over bed: 10-3/4"
  • Distance between centers: 30"
  • Maximum weight between centers: 80 lbs.
  • Swing over cross slide: 6-5/8"
  • Width of bed: 7"
  • Cross slide travel: 4-5/8"
  • Compound slide travel: 4"
  • Spindle nose: D1-4 camlock
  • Spindle bore: 1.358"
  • Spindle taper: MT#5
  • Spindle speeds: (8), 55-2200 RPM
  • Spindle bearings: tapered roller
  • Spindle length: 13-5/8"
  • Spindle length w/3-jaw chuck: 17-11/16"
  • Tailstock taper: MT#3
  • Tailstock quill travel: 3.125"
  • Tailstock barrel diameter: 1.574"
  • Inch threads: 4.5 to 128 TPI (37 pitches)
  • Metric threads: 0.25 to 2mm (15 pitches)
  • Longitudinal feed range: 0.0018 to 0.0128 IPR
  • Cross feeds: 0.0009 to 0.0064 IPR
  • Number of feed selections: 15
  • Maximum tool bit size: 1/2"
  • Spindle motor: 2 HP, 3-phase, 5.5A converted to 15A, 220V, single-phase, 60Hz with inverter
  • Base footprint: 51-1/2" x 8-3/8"
  • Approximate shipping weight: 645 lbs.

Standard Equipment:

  • Signature South Bend three V-way bed
  • 4-Way tool post
  • Outboard spindle spider for gunsmithing
  • Quick-change gearbox for cutting inch and metric pitches
  • Thread dial indicator
  • Carriage and cross-slide power feed
  • 6" 3-jaw scroll chuck mounted to D1-4 plate
  • Adjustable carriage stop
  • Change gears with drive shaft
  • Toolbox with service tools
