South Bend   |  SKU: SB1049F
Heavy 13 - 13" x 30" Gearhead Lathe with Fagor DRO
Reg: $16,975.00
Price: $15,975.00
Recently Added ×
You May Also Like ×

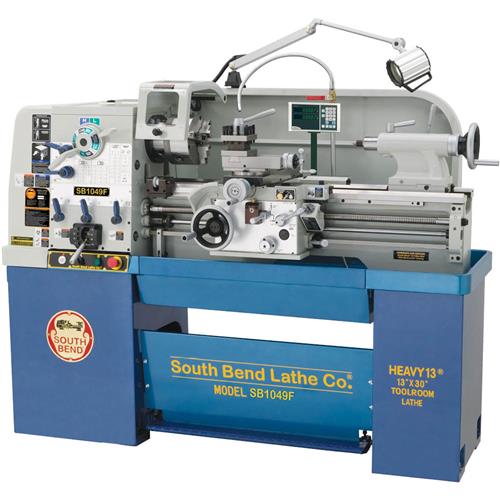

South Bend - Heavy 13 - 13" x 30" Gearhead Lathe with Fagor DRO

click to zoom

    See this item in our 2016 Main Catalog!
    618
    Write a review
    SKU: SB1049F

    Showroom Availability

    Missouri Temporarily Out of Stock
    Washington Temporarily Out of Stock
    Showroom Pickup

    Built in the South Bend tradition for speed, accuracy, and absolute high quality, the Heavy 13® lathes feature easy-to-use spindle speed controls, conveniently-located control panel, flood coolant system, micrometer stop, feed clutch rod, safety foot brake, safety chuck guard with shut-off microswitch, and a fully-enclosed quick-change gearbox. Also featured on these precision lathes are Japanese spindle bearings, Allen-Bradley® controls, precision hardened and ground gears, and the signature South Bend three V-way bed made with Meehanite® castings. Includes chucks and other accessories to quickly get you up and running. This lathe includes a Fagor Digital Readout.

    Specifications:

  • Swing over bed: 13.38"
  • Distance between centers: 30"
  • Swing over cross slide: 8.26"
  • Swing over gap: N/A
  • Cross slide travel: 7"
  • Compound travel: 4"
  • Spindle nose: D1-5
  • Spindle bore: 1.57"
  • Spindle taper: MT #5
  • Spindle speeds: (8), 80-2000 RPM
  • Tailstock taper: MT #3
  • Tailstock travel: 4.5"
  • Tailstock barrel diameter: 1.968"
  • Inch threads: (45) 2 to 72 TPI
  • Metric threads: (39) 0.2 to 14 mm
  • Modular pitches: (18) 0.3 to 3.5 MP
  • Diametral pitches: (21) 8 to 44 DP
  • Longitudinal feed range: 0.002" to 0.067"
  • Cross feed range: 0.001" to 0.034"
  • Spindle motor: 3 HP, TEFC induction
  • Voltage/Amps: 220V, single-phase, 19.45A
  • Coolant motor: 1/8 HP, TEFC induction
  • Approximate shipping weight: 2410 lbs.

    Standard Equipment:

  • 7" 3-Jaw Scroll Chuck D1-5 (Bolt on Jaws)
  • 8" D1-5 4-Jaw Independent Chuck
  • Chuck Safety Guard with Limit Switch
  • Faceplate 10" D1-5
  • Steady Rest
  • Follow Rest
  • Halogen Work Light
  • Coolant System
  • Dead Center MT #3, 2 pcs
  • Spindle Center Sleeve MT #5 - MT #3
  • Micrometer Carriage Stop
  • 4-Way Tool Post
  • Tool Set & Box
  • Level Pads 6 pcs.

    Features:

  • Three V-way Bed
  • Japanese Spindle Bearings
  • Full Length Splash Guard
  • Operation Manual
  • Allen Bradley Controls
  • Handwheel Safety Guard
  • Sliding Chip Tray
  • Rounded Corner Back Splash
  • Wood Crate
  • :

    :
