South Bend | SKU: SB1049

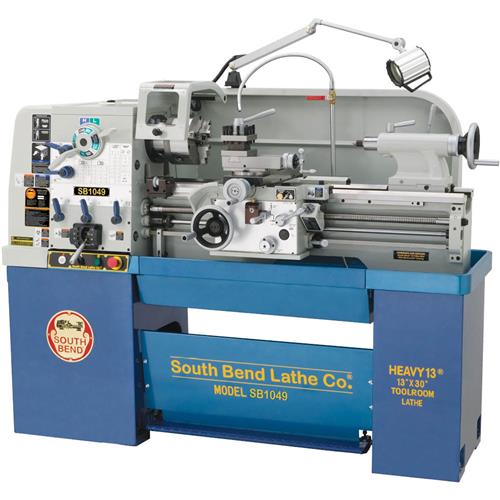

Heavy 13, 13" x 30" Gearhead Lathe
South Bend - Heavy 13, 13" x 30" Gearhead Lathe
click to zoom
Built in the South Bend tradition for speed, accuracy, and absolute high quality, the Heavy 13® lathes feature easy-to-use spindle speed controls, conveniently-located control panel, flood coolant system, micrometer stop, feed clutch rod, safety foot brake, safety chuck guard with shut-off microswitch, and a fully-enclosed quick-change gearbox. Also featured on these precision lathes are Japanese spindle bearings, Allen-Bradley® controls, precision hardened and ground gears, and the signature South Bend three V-way bed made with Meehanite® castings. Includes chucks and other accessories to quickly get you up and running.
Swing over bed: 13.38" Distance between centers: 30" Swing over cross slide: 8.26" Swing over gap: N/A Cross slide travel: 7" Compound travel: 4" Spindle nose: D1-5 Spindle bore: 1.57" Spindle taper: MT #5 Spindle speeds: (8), 80-2000 RPM Tailstock taper: MT #3 Tailstock travel: 4.5" Tailstock barrel diameter: 1.968" Inch threads: (45) 2 to 72 TPI Metric threads: (39) 0.2 to 14 mm Modular pitches: (18) 0.3 to 3.5 MP Diametral pitches: (21) 8 to 44 DP Longitudinal feed range: 0.002" to 0.067" Cross feed range: 0.001" to 0.034" Spindle motor: 3 HP, TEFC induction Voltage/Amps: 220V, single-phase, 19.45A Coolant motor: 1/8 HP, TEFC induction Approximate shipping weight: 2426 lbs. 7" 3-Jaw Scroll Chuck D1-5 (Bolt on Jaws) 8" D1-5 4-Jaw Independent Chuck Chuck Safety Guard with Limit Switch Faceplate 10" D1-5 Steady Rest Follow Rest Halogen Work Light Coolant System Dead Center MT #3, 2 pcs Spindle Center Sleeve MT #5 - MT #3 Micrometer Carriage Stop 4-Way Tool Post Tool Set & Box Level Pads 6 pcs. Three V-way Bed Japanese Spindle Bearings Full Length Splash Guard Operation Manual Allen Bradley Controls Handwheel Safety Guard Sliding Chip Tray Rounded Corner Back Splash Wood Crate
