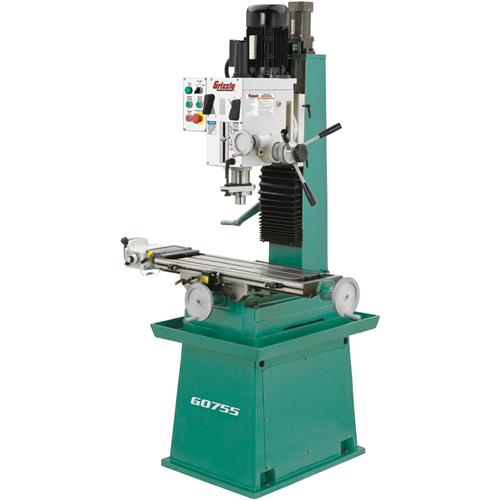

Grizzly Heavy-Duty Mill/Drill with Stand and Power Feed

click to zoom

    See this item in our 2015 Annual Catalog!
    SKU: G0755
    MPN: G0755
    Showroom Pickup

    This G0755 Heavy-Duty Gear-head Mill/Drill takes our G0754 Mill/Drill to the next level by including a stand and motorizing the headstock elevation travel on a dovetail-way column, which improves movement accuracy and increases rigidity. Like the G0754, this model features high-precision P5 spindle bearings, convenient gear-head spindle speed controls, dovetail ways, reversible spindle, and longitudinal variable speed power feed. Made in an ISO 9001 factory!

    Specifications:

    • Motor: 2 HP, 220V, single-phase, 1725 RPM, 8.6A
    • Swing: 20"
    • Max. distance spindle to table: 18"
    • Table size: 9-1/2" x 31-1/2"
    • Table travel (longitudinal): 17"
    • Table travel (cross): 7-7/8"
    • Head travel: 13-3/4"
    • Spindle travel: 5"
    • Spindle speeds: 90, 210, 345, 670, 1180, 1970 RPM
    • Spindle taper: R-8
    • Drawbar size: 7/16"-20
    • Face mill capacity: 3-1/8"
    • End mill capacity: 1-1/4"
    • Head tilt left and right: 90° L, 45° R
    • Quill diameter: 3"
    • Table T-slots: 3 total, 3-1/8" on center, 1/2" wide
    • Floor to table height: 34"
    • Overall dimensions: 49-1/2" W x 34-1/2" D x 75-1/4" H
    • Footprint: 21" W x 29" D
    • Approximate shipping weight: 1102 lbs.

    Features:

    • Motorized headstock elevation on dovetailed column
    • Included stand with chip tray
    • High-precision P5 (ABEC-5 equivalent) spindle bearings
    • Spindle speeds change with convenient gear-head levers instead of V-belts
    • Head tilts up to 90° left or 45° right
    • Longitudinal variable speed power feed
    • Table is coolant system ready
    • Dovetail ways
    • Reversible spindle
    • Fine downfeed control and adjustable depth stop

    Standard Equipment:

    • Spindle adapter R-8 x MT#3
    • Spindle adapter MT#3 x MT#2
    • Drill chuck arbor and 1–13mm drill chuck
    • T-slot bolts with nuts
    • Drift key for tool removal
    • Service wrenches
    • Hex wrench set
    • Bottle for oil
    • Tool box

    :

    :
