Grizzly   |  Model: G0448
Heavy-Duty Mortiser With Stand
Price: $1,555.00
Recently Added ×
You May Also Like

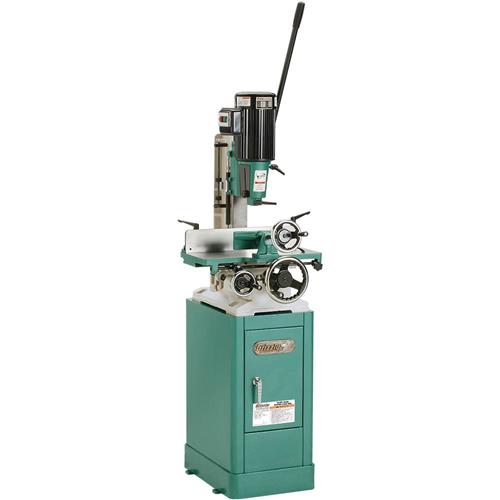

Grizzly G0448 - Heavy-Duty Mortiser With Stand

click to zoom

See this item in our 2017 Main Catalog!
139 320
Buy Now!
Price:
Freight:
Oversize:
Total:
Monthly payments as low as . Learn More
The flexibility to perform compound-angled mortises with perfect control is what sets this Heavy-Duty Mortiser apart from all others. Simple adjustments allow the head to tilt up to 30° left or right, and the fence also pivots up to 30°, providing just about any combination of angles. Handwheel controls allow you to move the table left/right and forward/backward with precision and ease. Adjustable work stops help ensure consistent results with production runs. Round all this out with a 1-1/2 HP motor and solid cast iron construction, and you'll see why this has become the mortiser of choice for busy shops around the country!

Specifications:

  • Motor: 1-1/2 HP, 110V/220V, single-phase, TEFC, 1725 RPM, prewired 110V
  • Amps: 14A/7A
  • Table size: 19" x 12-1/2"
  • Vertical spindle travel: 9"
  • Head vertical travel: 3"
  • Table longitudinal travel: 14-1/2"
  • Table cross travel: 3"
  • Column tilt: + or - 30°
  • Fence angle: 0-30°
  • Chisel capacity: 1/4" - 1-1/2"
  • Maximum chisel stroke: 6-1/4"
  • Maximum workplace width: 9"
  • Chuck capacity: 1/2"
  • Collar size: 5/8" and 3/4"
  • Spindle speed: 1725 RPM
  • Footprint: 20-1/2" x 17-1/2"
  • Overall size: 71"H X 36"W X 24"D
  • Approximate shipping weight: 356 lbs.

Features:

  • Solid cast iron construction
  • Dovetail ways on column
  • Rack-and-pinion headstock control
  • Gas-spring assisted head return
  • Work stop with extension rods for setting each workpiece exactly the same
  • Quick acting rack-and-pinion drive on longitudinal slide speeds up production of wide mortises
  • Tilting column
  • Angled fence adjustment
  • Large hold down clamp
  • Steel cabinet stand with indexed storage shelf for mortising chisels
  • Stand included

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

1 Customer Review (5 out of 5 stars): Sign in to write a review

The Best
5/ 5stars

The Grizzly G0448 is my third hollow chisel mortiser. I was hesitant to invest so much money in a mortiser since I am only a hobbyist. However, I was doing a project that would require a lot of mortises and I had enough frustrations with the previous cheap ones and so ordered the G0448. It is worth every cent. The ease of use, speed in moving the work piece left/right and fore/aft is such a treat. The depth stop setting is very easy to adjust and will not move under pressure, like some other mortisers. Every time I use it I realize I made the right decision with this tool purchase.

Animation for G0448
×
