Grizzly   |  Model: G0846
Horizontal Slot Mortiser
Price: $695.00
Recently Added ×
You May Also Like

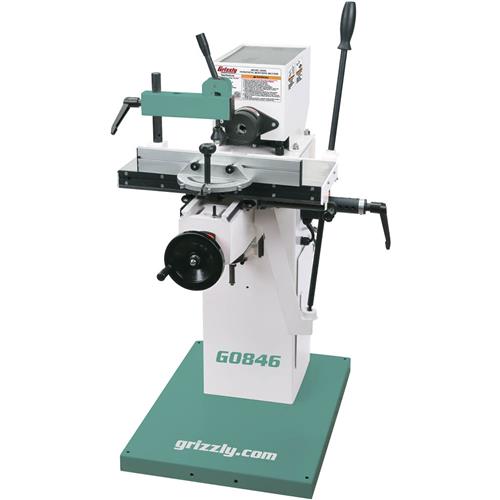

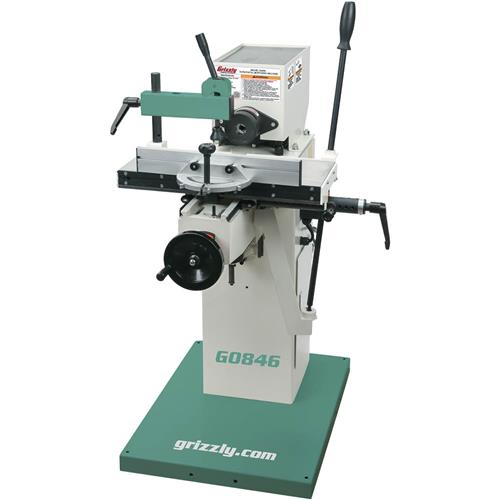

Grizzly G0846 - Horizontal Slot Mortiser

click to zoom

tap to zoom

See this item in our 2018 Main Catalog!
145
Buy Now!
Price:
Freight:  Freight
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
Tired of elaborate jigs and fixtures for loose tenon or doweling designs? Roll the G0846 into your shop and kiss those time-consuming set-ups goodbye! Adding a horizontal boring machine to your shop will dramatically increase your capability, production, and accuracy. This machine comes with a 20" x 8" precision-ground cast iron table with a cam-locking clamp to secure the workpiece. The table glides along two hardened V-ways using four ball bearings for smooth, effortless motion. The bearing tracks are equipped with two "X" direction stops and one "Y" direction stop, which are crucial for repeatable operations. the X axis also incorporates an indexing bar that provides four different spacing patterns. Quite simply, this Slot Mortiser is probably the most efficient, accurate, and quiet method we offer for cutting mortises. If you cut a lot of mortises, you won't be disappointed!

Specifications:

  • Motor: 2 HP, single-phase, 220V, 10A
  • Maximum distance spindle center to table: 5-3/8"
  • Table size: 8-1/4"W x 20"L
  • Table cross travel: 6"
  • Table vertical travel: 5-1/2"
  • Table longitudinal travel: 12-1/2"
  • Floor to table height: 30" - 35-1/2"
  • Chuck capacity: 5/8"
  • Dust port size: 4"
  • Footprint: 20-1/2" x 27-1/2"
  • Overall size: 32"W x 36"L x 48-1/2"H
  • Approximate shipping weight: 315 lb.
Features:
  • Westcott-style 2-jaw chuck
  • Longitudinal table stops indexed at 5/8", 3/4", 7/8", 1"
  • Adjustable cam-lock clamp
  • Precision dovetail V-ways for table movement
  • Locking miter gauge
  • FWD/REV spindle control
