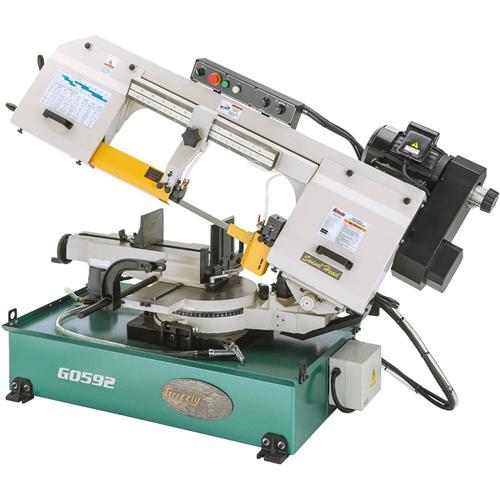

Grizzly Metal Cutting Bandsaw 10" X 18"

click to zoom

    See this item in our 2015 Annual Catalog!
    SKU: G0592
    MPN: G0592
    Showroom Pickup
    This full featured Metal-Cutting Bandsaw includes large cutting capacity, a swivel base to cut miters from -45 degrees to +60 degrees, variable speed control, hydraulic feed control, and built-in coolant system. If you're looking for something in this size range, you'll have a tough time finding a better metal-cutting bandsaw with these features and at this price anywhere else. Metalworking production shops should take a good look at this!

    Features:

    • Swivel base with degree scale
    • Centralized control panel on top of saw bow
    • Heavy-duty all steel, one piece base
    • Adjustable hydraulic down feed (just dial your feed rate)
    • Variable speed control
    • Quick positioning vise
    • -45 degree to +60 degree swivel
    • Tooth selection chart
    • Built-in coolant system
    • Automatic shut off
    • Adjustable blade guide system
    • Blade wheels have heavy-duty ball bearings
    • Adjustable head weight pressure
    • Wash down hose and spray gun
    • Adjustable positive stops for head angle

    Specifications:

    • Motor: 2 HP, 220V, single phase, 1725 RPM
    • Blade size: 132" x 1"
    • Blade speeds: Variable, 98-394 FPM
    • Miter cutting capacity: -45 degree to +60 degree
    • Floor to table height: 20"
    • Overall dimensions: 72-1/2"W x 32"D x 58"H

    Cutting capacities:

    • 90 degree, round: 10"
    • 90 degree, rectangular: 9-1/2" x 18"
    • +/- 45 degree, round: 10"
    • +/- 45 degree, rectangular: 10" x 11"
    • +60 degree, round: 8"
    • +60 degree, rectangular: 5" x 8"
    • Approximate shipping weight: 967 lbs.

    :

    :
