Grizzly   |  Model: G0818
Metal Dust Collector
Price: $1,343.75
Recently Added ×
You May Also Like
(4)

Grizzly G0818 - Metal Dust Collector

Model: G0818
Buy Now!
Price:
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More

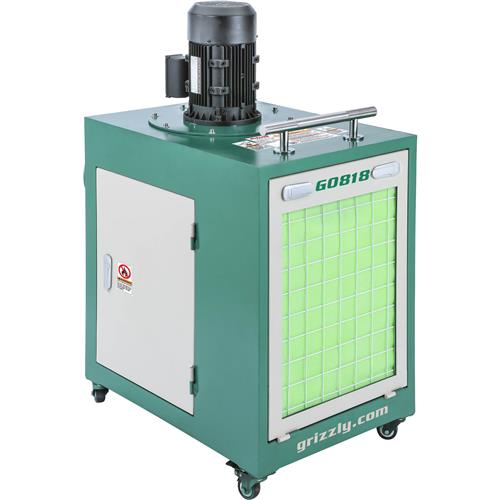

If grinding, buffing, or polishing metals is your thing, our G0818 Metal Dust Collector will help you keep your shop safe and clean. This sturdy steel-constructed dust collector features a removable chip clean-out drawer for easy disposal of metal chips and collected particulate. Incoming air from the dual 4" inlets must pass through a three-stage filtering system that includes a 30-micron stainless steel filter, 5-micron active carbon filter, and a pleated 1-micron filter. An industrial-duty 220V, 1.5 HP direct-drive motor powers the 12-3/4" aluminum impeller for a whopping 755 CFM! Also features locking caster wheels and a push handle for easy placement and positioning.

Specifications:

  • Motor: 1.5 HP, 220V, single-phase, TEFC, 3450 RPM, 8.2A
  • Airflow capacity: 755 CFM
  • First-stage filter: 30 microns, stainless
  • Second-stage filter: 5 microns, active carbon
  • Third-stage filter: 1 micron, pleated micro-filter
  • Filter size: 15-3/4" x 19-3/4" x 1-3/16"
  • Impeller size: 12-3/4"
  • Overall size: 39"W x 20"D x 41-1/2"H
  • Main inlet size: 6"
  • Number of Adapter Inlets: 2
  • Adapter inlet size: 4"
  • Sound rating: 85 dB
  • Chip clean-out drawer capacity: 1 cu. ft.
  • Approximate shipping weight: 309 lb.
Features:
  • 3-Stage filter system
  • Aluminum impeller
  • Toggle ON/OFF switch
  • Dual 4" inlets for two machines
  • Built in an ISO 9001 Factory
Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

4 Customer Reviews (5 out of 5 stars): Sign in to write a review

The air is clean again! 7/19/2018

We plumbed the dust collector into two lawn mower blade grinders. In the past grinding dust in the room was so thick it would collect on the walls. Now the walls are staying clean and the air is clear.

4/20/2018

Have this hooked up to the bed of a 750 watt fiber laser cutting aluminum. Does a very good job with pulling the air flow through the sheet and with filtration. It is however much louder than they say. Sound pressure at 6 feet is 92 - 93 db making hearing protection manditory when it is in use.

2/26/2018

I bought this metal dust collector and it is going to help keep my shop free of metal dust, very powerful! Would recommend to anybody building knifes.
