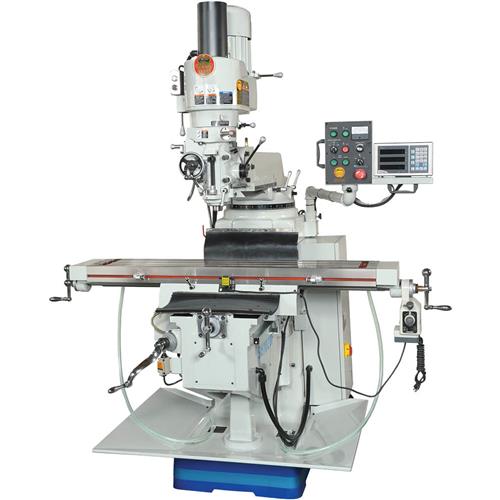

brand logoSouth Bend Mill 10" x 54" with DRO

SKU: SB1028F
MPN:
Showroom Pickup
For applications that require large capacities and high tolerances, these full featured 10" x 54" Vertical Milling Machines are ideal! Discerning machinists will appreciate their electronic variable speeds, fully articulated head/ram assemblies, table and knee power feeds, chromed quills, high quality spindle bearings, double-bronzed leadscrew nuts, Allen Bradley® electronics, and swing arm mounted controls. The 5 HP, 3-phase motors run on single-phase 220V power with Yaskawa inverters to provide variable spindle speeds without requiring 3-phase power. True to their South Bend® name, these outstanding milling machines will surpass expectations!

Specifications:

  • Table size: 10" x 54"
  • Longitudinal travel: 35"
  • Cross travel: 16"
  • Vertical (knee) travel: 14-1/4"
  • Table T-slots: (3) 5/8"
  • Spindle motor: 5 HP, 3-phase, AEVF, 1725 RPM, 220V
  • Spindle taper: R-8
  • Spindle speeds: 60–5000 RPM (variable)
  • Spindle nose to table: 2-1/4"–16-1/2"
  • Spindle centerline to column: 6-1/2" x 26"
  • Quill travel: 5"
  • Automatic vertical feeds (per revolution): 0.0015", 0.003", 0.006"
  • Head swivel: (L&R) 90° & (F&B) 45°
  • Ram travel (In/Out): 19-1/2"
  • Column swivel: 360°
  • Approximate shipping weight: 3350 lbs.
  • Dimensions: 66" L x 77" W x 89" H
  • Footprint: (L x W ) 41-1/2" x 24-1/2"

Features:

  • Allen Bradley® electronic components
  • High-quality, low-vibration AEVF spindle motor
  • Built-in single-phase to 3-phase Yaskawa power inverter
  • P4 (ABEC-7) high-precision angular contact spindle bearings
  • X & Y leadscrew nuts double-bronzed for ultra-smooth movement with minimal backlash
  • Lever-action one-shot pump way lubrication system
  • Control panel mounted on adjustable arm
  • Complete built-in coolant system
  • Table elevation power feed (Z-axis)
  • Variable speed X-axis power feed
  • Auto-downfeed with micro-adjustable stop
  • Hardened and precision-ground table surface
  • Chromed-steel quill
  • Heavy-duty spindle brake

Standard Equipment:

  • Fagor DRO
  • Yaskawa 5.5 KW/220V inverter
  • Longitudinal table power feed (X-axis) with rapid override
  • Table elevation (Z-axis) power feed
  • One shot lubrication
  • Flood coolant system
  • Chip pan for base
  • Tool box and manual

Optional Equipment:

  • Milling vises
  • R-8 collets
