South Bend | SKU: SB1025F | Model: SB1025F
Mill 9" x 42" with DRO, 3-Phase
Price: $8,995.00

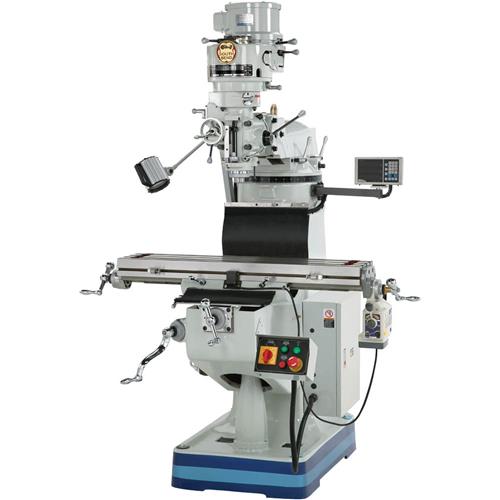

South Bend SB1025F - Mill 9" x 42" with DRO, 3-Phase

click to zoom
tap to zoom
See this item in our 2018 Main Catalog!

Free shipping within the Contiguous United States.
Act Fast!
Sales of this outlet item are limited to quantity on hand.
Free shipping within the Contiguous United States.
Act Fast!
Sales of this outlet item are limited to quantity on hand.
All the precision you could ever need has been masterfully executed in these new South Bend® milling machines. Choose from the 8 speed single phase or the 16 speed 3-phase mill & get the uncompromising quality you've come to expect. No detail has been left to chance: rigid Meehanite castings, hardened & precision-ground table, chromed quill, silky smooth spindle rotation on precision bearings & Turcite coating on the ways, just to name a few! These machines are built to last for many years to come & will provide accurate performance all along the way. Beautiful South Bend® light gray & two-tone blue color scheme.
Show More...
California Proposition 65 Warning
Specifications:
- Table size: 9" x 42"
- Longitudinal travel: 24-1/2" with power feed, 29-1/2" without power feed
- Cross travel: 13"
- Vertical (knee) travel: 16"
- Table T-slots: (3) 5/8"
- Maximum workpiece weight: 750 lbs.
- Spindle motor: 2 HP, 3-phase, 220V, 60 Hz
- Spindle taper: R-8
- Spindle speeds: 80–5600 RPM (16 steps)
- Spindle nose to table: 0"–18"
- Spindle centerline to column surface: 6"–19"
- Quill travel: 5"
- Automatic vertical feeds (per revolution): 0.0015", 0.003", 0.006"
- Head swivel: (L & R) 90° & (F & R) 45°
- Ram travel (In/Out): 13"
- Ram swivel: 180°
- Approximate shipping weight: 2161 lbs.
- Net machine weight: 1940 lbs.
- Overall dimensions: 63" W x 81" H x 58" D
Features:
- Allen Bradley® controls
- Japanese NSK/NTN bearings
- Table, knee and ram are equipped with dual locking mechanisms
- Balanced spindle and high-precision P4 (ABEC-7) bearings for smooth, quiet and precise operation
- Turcite-coated ways
- Each machine comes with its own QC report for tested tolerances
- South Bend® brass nameplate
- Meehanite® casting
- Built in the typical South Bend® “no compromises” fashion
- Fagor DRO
Standard Equipment:
- Longitudinal table power feed with rapid override
- One shot lubrication
- Tool box and operational manual
- Work light
- Each machine crated individually
Optional Equipment:
- Milling vises
- R-8 collets
