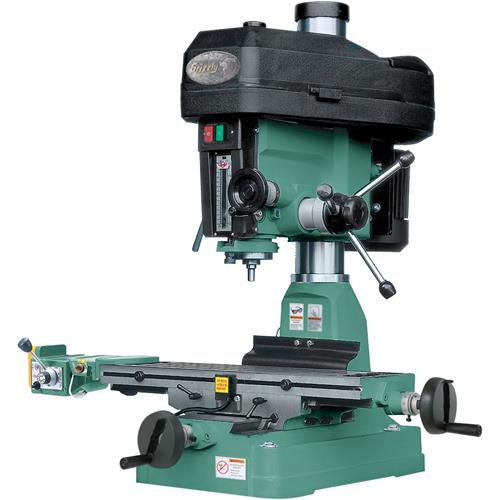

Grizzly G1007 - Mill/Drill w/ Variable-Speed Power Feed

This Mill/Drill has long been accepted in the market as a machine that can handle the work of machines costing thousands of dollars more. We go one step further and offer you this improved model with a super-large table and a variable speed power feed. The power feed is reversible with rapid traverse for fast return and has an automatic shut-off micro-switch. The table can also be used manually. It comes standard with 3" carbide fly cutter, angle vise and 1/2" drill chuck.

Specifications

• Motor: 2 HP, 110V/220V, 18A/9A, single-phase, prewired 110V
• Spindle taper: R-8
• Spindle travel: 5"
• Swing: 15-7/8"
• Max. distance spindle to table: 18"
• Column size: 4-1/2"
• Collars calibrated: 0.001"
• T-Slots: 4 @ 2-1/16" centers, 5/8" wide
• Table size: 9-1/2" x 32"
• Table travel (longitudinal): 23-1/2"
• Table travel (cross): 7"
• Drilling capacity: 1-1/4"
• Number of speeds: 12
• Range of speeds: 150, 225, 255, 350, 400, 500, 850, 1200, 1500, 1600, 2300, 3000 RPM
• Approximate shipping weight: 629 lbs.

Features:

• Exclusive fine downfeed is graduated in 0.001" and is engaged by clutch-type mechanism
• Heavy-duty, 12-speed tapered roller bearing spindle
• Push-button switch with thermal overload protection
• Top-quality workmanship throughout
