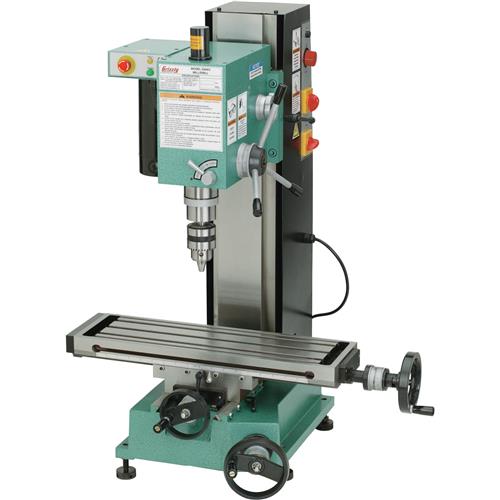

Grizzly G0463 - Mill / Drill

click to zoom

tap to zoom

    Specification Sheet - PDF Manual - PDF Parts List - PDF PurchaseBuy Parts
    See this item in our 2018 Main Catalog!
    611 633 693
    View (1) Reviews
    Model: G0463
    Buy Now!
    Price:
    Freight: +  Freight
    Tariff Fee: +  Tariff Fee
    Oversize: +   Oversize
    Total:
    Monthly payments as low as . Learn More
    This rugged little brute is the cat's meow in small mill/drills. It has more features than even some of the large mill/drills, namely a dovetail column and variable speeds. And it comes with coolant troughs in the table, adjustable gibs in all the slides, a reversing switch, a standard 7/16"-20 TPI draw bar, R-8 spindle and easy to read dials with inch-cut leadscrews. With all these features and mass, you'll be able to mill, drill, bore, and ream through the most serious hobby projects around!

    Features:

    • Dovetail column with elevation handwheel graduated in 0.0005"
    • Variable spindle speed from 0–2000 RPM
    • Push button emergency switch with indicator lights
    • Over 14" of headstock movement
    • 2-speed range gearbox
    • Reversing switch
    • Coolant trough
    • Circuit fuse
    • Dial speed control
    • Includes: 5/8" drill chuck & arbor, 2 T-nuts, 3 open end combo wrenches, 4 hex wrenches and extra drive belt
    • Made in an ISO 9001 factory

    Specifications:

    • Motor: 3/4 HP, 110V, single-phase, universal
    • Spindle taper: R-8
    • Spindle travel: 3-3/8"
    • Swing: 18"
    • Max. distance spindle to table: 14-3/4"
    • Collars calibrated: 0.001"
    • T-Slots: 3 @ 1-11/16" centers, 7/16" wide
    • Table size: 6-1/4" x 21-5/8"
    • Table travel (longitudinal): 15-7/8"
    • Table travel (cross): 5-3/4"
    • Headstock travel: 14-7/8"
    • Drilling capacity: 1"
    • Quill diameter: 2.362"
    • Variable speed: 50–1000, 100–2000 RPM (Hi-Low gearbox)
    • Approximate shipping weight: 445 lbs.
    Show More... California Proposition 65 Warning
    Specification Sheet - PDF Manual - PDF Parts List - PDF PurchaseBuy Parts

    Accessories and Related Items: View All

    You May Also Like:

    Customers who purchased this item also purchased:

    1 Customer Review (4 out of 5 stars): Sign in to write a review

    Very nice machine for the money. 6/22/2017
    Recommended

    It arrived DOA. After cleaning off the shipping grease we went to power it up to begin the break in process. No joy. Dead. I recalled reading a review from a another seller of a machine very much like this one. He had the same issue. The problem was a bad crimp on one of the supply wires. After replacing that crimp terminal, we checked all the other connections as well. Sure nuff two other connections were "weak". After making sure ALL the electrical connections were secure we buttoned it back up and it has been running every day since. For our purpose the machine is exactly what we needed. I'll most likely be purchasing more of these units from Grizzly.
