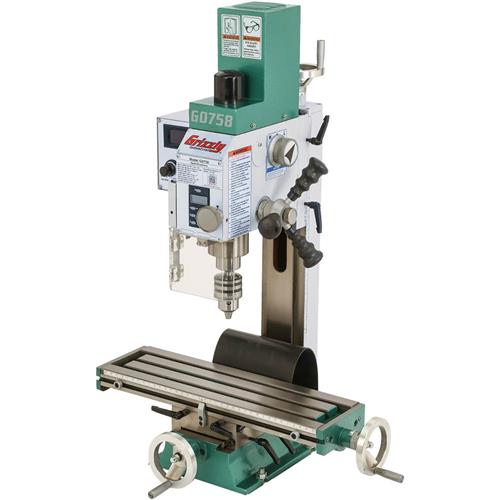

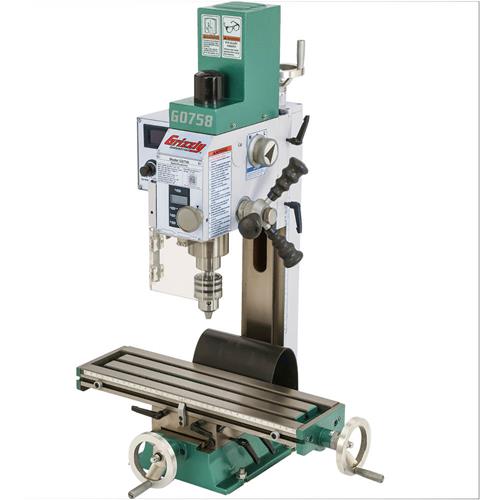

Grizzly G0758 - Mill/Drill

click to zoom

See this item in our 2016 Main Catalog!
571
Showroom Pickup
Alternate Text
Say hello to the champion of mini mills! This Variable-Speed Mini Mill/Drill borrows from the heritage of our hugely popular G0704—with a high-torque (and quiet) 600W DC motor, super-rigid precision-ground dovetail headstock column and table ways, variable-speed spindle control from 50 to 2000 RPM, spindle speed DRO, spindle depth DRO (with inch/mm display and zeroing function), coarse and fine spindle downfeed, and precision handwheel control for X, Y, and Z-axis. If that is not enough, this fiesty champ has one of the largest tables, table travel, and motor sizes in its class, allowing it to take on a huge range of workpiece sizes. With its R-8 spindle taper, it can also make use of a wide variety of tooling. And, when the going gets really tough, the headstock is equipped with a special shifter knob that allows you to drop power-transfer gearing down for maximum torque in the lowest RPM range. No split-decisions here, this is a great little machine!

Shown with optional T26612 stand and chip tray.

Specifications:

  • Motor: 600W (3/4 HP), DC, 110V, 10A
  • Spindle taper: R-8
  • Spindle travel: 2"
  • Swing: 13-1/4"
  • Max. distance spindle-to-table: 8-3/4"
  • Head tilt: 45 degrees left & right
  • Head travel (Z-axis): 8-1/4"
  • Table travel (X-axis): 13-1/8"
  • Table travel (Y-axis): 5-1/2"
  • Table size: 5-3/4"W x 19-3/4"L
  • T-slots: 3 @ 1-1/2" centers, 3/8" wide
  • Spindle speed: 50 to 2000 RPM
  • Approximate shipping weight: 204 lbs.

Features:

  • Dovetail headstock column and table ways
  • High-torque, low-noise DC motor
  • Variable-speed spindle with DRO
  • Spindle elevation DRO
  • 3-Axis precision handwheel control
  • Coarse and fine spindle downfeed
  • 2-Speed gearbox
  • Zero-setting dials on handwheels
