Description

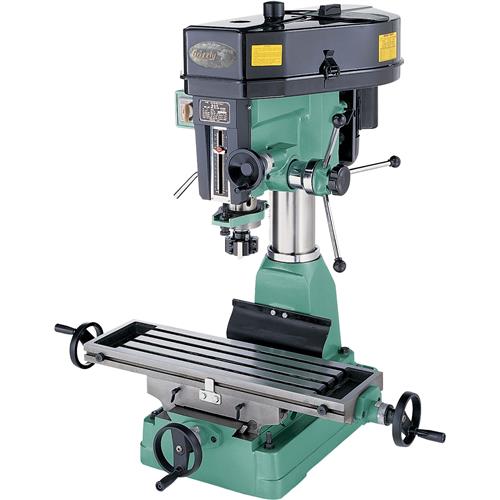

This is one of the best bargains on the market today. This Milling / Drilling machine features a powerful 2 H.P. motor, standard R-8 spindle with 5" of travel, 4-1/2" cast iron column, easy-to-read dials, reversing switch and more. And its a heavy brute! Weighing in at 620 lbs., you can expect lots of rigid, heavy duty performance. A lot of machine for the dollar, check out the specs below.

Specifications:

• Spindle taper: R-8
• Spindle travel: 5"
• Swing: 15-7/8"
• Max. distance spindle nose to table: 17-3/4"
• Column size: 4-1/2"
• Table size: 28-3/4" x 8-1/4"
• Max. table travel: 23-1/2"
• Cross-slide travel: 7"
• Drilling capacity: 1-1/4"
• Number of speeds: 12
• Range of speeds: 120-2500 RPM
• Motor size (Single Phase 110V/220V): 2 H.P.
• Approx. shipping weight: 620 lbs.

Features:

• 1/2" Drill Chuck
• Clutch-type Downfeed Mechanism
• Graduations are in inches

See pages 274, 573, and 651 of our 2008 Grizzly Catalog!

See page 17 of our 2008 Metalworking Catalog!
