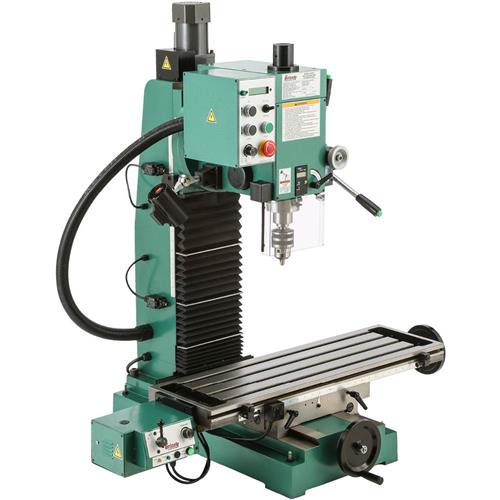

Grizzly | Model: G0722
Milling Machine with Power Feed
Grizzly G0722 - Milling Machine with Power Feed
click to zoom
See this item in our 2015 Annual Catalog!596
The latest addition to our family of benchtop mills has all the features you need to take on the most demanding projects. Start with the easy to use spindle speed control—just turn the dial to set your speed for optimum cuts and tool life. Tapping is also a breeze with switch control right in the handles. There are even digital displays for spindle speed, spindle height and head angle for excellent heads-up operation! And, don’t forget the powerfeed for the head—no more cranking here, just push a button to clear the tooling, change it out and push another button to drop it down to get back into the action! T23959 Optional Stand not included.
Power head elevation Digital head tilt angle display Head and table travel on dovetailed ways Includes B16 drill chuck Dovetail column Digital spindle scale reads metric or inches, zero set, ON/OFF, graduated in 0.0005" Digital speed display Reversing buttons on the spindle handles for tapping Coolant trough Front mounted fine feed knob Front mounted E-stop button See-through chip guard Made in an ISO 9001 factory Motor: 2 HP, 230V, single-phase, universal Power source: 110V Spindle taper: R-8 Spindle travel: 3-5/16" Swing: 22-3/4" Max. distance spindle to table: 15-3/4" T-Slots: 4 @ 2-1/8" centers, 9/16" wide Table size: 9-1/2" x 32-1/4" Table travel (longitudinal): 17-5/8" Table travel (cross): 9-5/8" Headstock travel: 13-1/8" Headstock tilt: 90° L & 45° R Drilling capacity: 1-1/8" Quill diameter: 2.56" Variable speed: 100–1600 RPM Approximate shipping weight: 768 lbs.
