Grizzly   |  Model: G0727
Mini Horizontal/Vertical Mill
Price: $925.00
Recently Added ×
You May Also Like

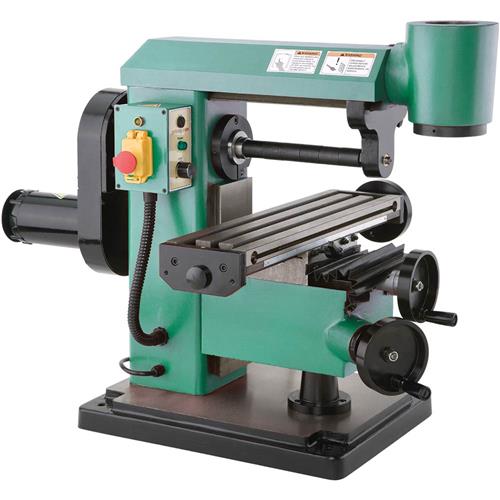

Grizzly G0727 - Mini Horizontal/Vertical Mill

click to zoom

See this item in our 2017 Main Catalog!
567 655

Showroom Availability

Missouri In Stock
Washington Temporarily Out of Stock
Showroom Pickup

If your work requires both horizontal and vertical milling in a small footprint, this is the machine for you! Simple conversion to horizontal and vertical milling operations means there's very little set-up time. The DC motor also provides variable spindle speeds for matching material, tooling, and finish. Heavy cast iron construction, dovetail ways, and three-axis control all combine to give you precision and versatility for any milling job.

FEATURES:

  • Easily converts for either vertical or horizontal milling
  • Dovetail ways for accuracy
  • 3-Axis table movement
  • Variable-speed spindle
  • Emergency stop button
  • Heavy-duty cast iron construction
  • Compact design mounts to workbench or stand
  • Made in an ISO 9001 factory

    SPECIFICATIONS:

  • Motor: 1/2 HP, DC, 110V, single-phase
  • Spindle taper: R-8
  • T-slots: 3 @ 1.33" centers, 7/16" wide
  • Head tilt: 45° L/R
  • Max. distance spindle to table: 6-1/2"
  • Table travel (longitudinal): 11-7/8"
  • Table travel (cross): 3-11/16"
  • Table size: 4-3/4" x 18-1/8"
  • Range of speeds: Variable, 200–2000 RPM
  • Approximate shipping weight: 268 lbs.
