Grizzly   |  Model: G8689
Mini Milling Machine
Price: $665.00
Recently Added ×
You May Also Like
(13)

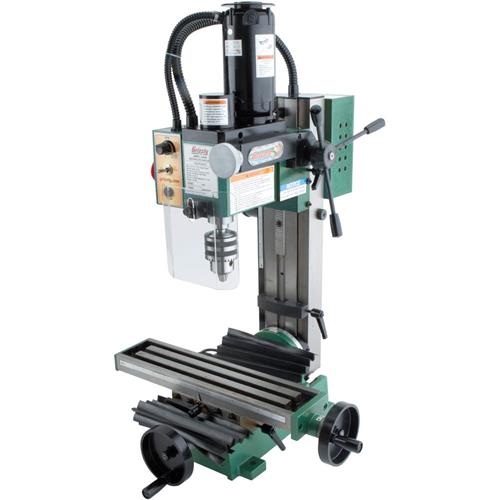

Grizzly G8689 - Mini Milling Machine

Buy Now!
Price:
Freight:  Freight
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
Now here is a Mini Milling Machine that has more features than some Mill/Drills and is affordable for everyone! This little brute will handle any kind of job up to 1/2" drilling, 1/2" end mills and 1" facing. No belt changes necessary! The variable speed control and gear drive saves you time and hassle—Truly a remarkable machine.

Features:

  • Safety shut-off switch
  • Adjustable depth stop
  • Fine feed head control
  • Geared drive
  • Clear guard on spindle
  • Rubber chip guards on ways
  • Zero-setting dials read in inches
  • Adjustable dovetail ways on column
  • 3/8" and 1/2" collets
  • 1/2" drill chuck
  • Two T-nuts
  • Made in an ISO 9001 factory

Specifications:

  • Motor: 3/4 HP, 110V, single-phase, 4.5A
  • Spindle taper: MT #3
  • T-slots: 3 @ 1-1/8" centers, 7/16" wide
  • Head travel: 7-1/2"
  • Head tilt: 45° L/R
  • Max. distance spindle to table: 11-1/2"
  • Swing: 12-3/4"
  • Table travel (longitudinal): 7-5/16"
  • Table travel (cross): 4"
  • Table size: 3-5/8" x 15-3/4"
  • Range of speeds: Variable, 0–2500 RPM
  • Drawbar thread size: M12-1.75
  • Approximate shipping weight: 149 lbs.
Show More...

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

13 Customer Reviews (4.5 out of 5 stars): Sign in to write a review

Nice machine
4/ 5stars

Meets expectations
5/ 5stars

This mill is everything I had thought it to be after having read countless reviews on-line. Upon receiving, it was immediately disassembled & cleaned (very important), then carefully inspected, re-adjusted, re-lubed, and run through its bearing break-in procedure, all without incident. Confident there would be no surprises, an air lift kit, belt drive conversion, Z-axis DRO, and a custom stiffening plate to increase column rigidity, were then added. Could not be happier with its performance.
BTW, the machine took only a 3 or 4 days to arrive, and came damage-free in a wooden box.
I'll be back to buy a Grizzly lathe next.

Grizzly Mini Mill.throwing chips
5/ 5stars

the mill was delivered to my house on a pallet. complete with all accessories. very heavy to get up on the bench top. Cleaned up the shipping cosmo. broke in the spindle per instructions. so far it functions great. would highly recommend.

3/ 5stars

For small projects this Mill doesnt do a bad job. Stirrped gears out the second time i used it but Grzzly was fast with the warranty parts.

I've only used it once, but so far it's an excellent Mill!!
4/ 5stars

This is a good mill for a great price! I wish I would have ordered a vice with it though, or even better, if one came with it! It's useless to me without a vice so I'm going to buy one soon.

5/ 5stars

awesome little mill! Perfect for home gunsmithing and other repairs Ive used it for hours already and it has performed flawlessly. Maybe I can put some dro's on it later and make it even better and easier to use. I hope to use it to make a couple of gunstocks this fall. awesome little unit. Thanks Grizzly! T. Resler

Okay Product
3/ 5stars

Overall this mini mill is fine. As might be expected on a piece of machinery shipped from overseas, the machine was covered in cosmoline. To remove the gunk completely requires disassembly of the mill. By definition a mill is supposed to be a relatively accurate tool. This mill comes shipped with a chuck with an acceptable run out of .006" (per tech support). That tolerance or lack of it is fine for rough drilling but not precision drilling. If you are willing to abandon this component and use quality collets instead, you will be good to go.

So Far So Good
5/ 5stars

I'm a knife maker by trade, and a milling machine in some capacity is not only needed, but it also opens a lot of options. This machine is simple in it's construction, and it's priced just right. I've only had the machine for a month so far, but it has performed every task I've thrown at it so far wonderfully. I chose this over the Mill/Drill because the simpler it is, the longer things seem to last. So far there has not been a a part of the machine that makes me feel like it's cheaply made. The tilting head seems to work very well, and stays in position. I'll be sure to change this is this machine becomes an under performer, but so far so good.

I love my mini mill.
5/ 5stars

I also decided to get the 4" rotatory stage too!

5/ 5stars

This milling machine is outstanding! Exceptional quality in a compact package.

5/ 5stars

Great little machine, wonderful for milling small parts on guns. good buy

Excellent product and a good value!
5/ 5stars

Service was excellent, it is a great product, and delivery worked like a fine clock!
