Grizzly | Model: G8030
Overarm High Speed Router

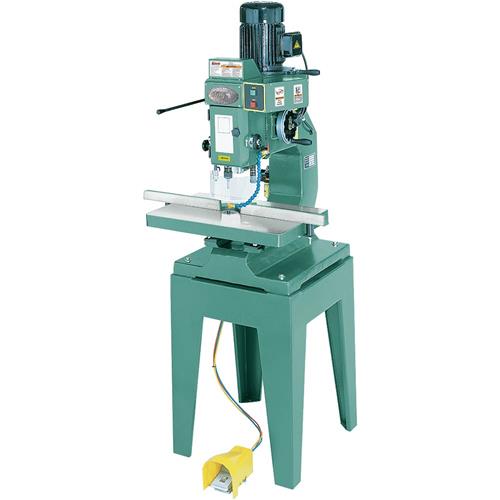

Grizzly G8030 - Overarm High Speed Router
click to zoom
Make production routing a breeze with this Overarm High Speed Router. Simply attach a template to the bottom of your workpiece and feed against the table-mounted pin. Overhead cutting lets you see your work. Hydraulic head and foot controls speed up your work even more. Includes clamp-on fence for in-line routing and massive tilting cast iron table for greater versatility.
Fence or pin routing Foot control for spindle movement Head assembly travels on dovetail ways Motor: 3 HP, 220V, single-phase, TEFC, 15 Amps, 3450 RPM Table size: 24" wide x 18" deep Shielded and permanently lubricated ball-bearings Power transfer: single flat belt Spindle speed: 20,000 RPM Spindle stroke: 3-5/8" Head stroke: 5-3/4" Max. distance spindle to table: 9-1/2" Swing: 19-1/2" Table tilt: 45° Overall height: 74" Overall width: 24" (no fence); 33-1/2" (with fence) Overall depth: 35" Approximate shipping weight: 615 lbs. Tool box Hex key wrench set Grease gun 1/2" collet 1/4" collet Spindle wrench set 3/8" plunge router bit with 1/2" shank 1/4", 3/8" & 1/2" table pins
for pin routing Stand
Animation for G8030
