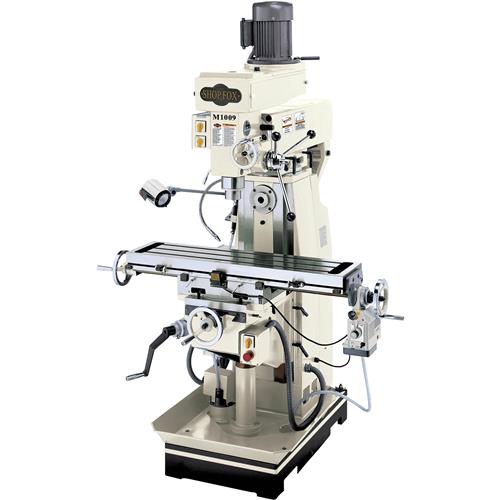

Shop Fox T20830 - Horizontal/Vertical Mill

For pure milling versatility, you can't go wrong with this mill. Built with the same rigid construction and great features as our Model M1008 vertical mill, the Model M1009 has a horizontal spindle head mounted in the column and easily converts from vertical to horizontal in under 5 minutes. Also includes a large 9-1/2" x 39-3/8" table, 1" & 1-1/4" horizontal spindles, and a separate motor for each spindle. Why use valuable shop space for two machines when you can get the same results from one?

Vertical motor: 2 HP, 220V, Single-phase, 12.5 Amps, TEFC

Horizontal motor: 1-1/2 HP, 220V, Single-phase, 9.5 Amps, TEFC

RPM (each motor): 1725

Power Transfer: V-Belt

Spindle taper: R-8

Spindle travel: 5"

Table size: 9-1/2" x 39-3/8"

Table travel (longitudinal): 23-1/2"

Table travel (cross): 5-3/4"

Knee travel (vertical): 15"

Max. dist. spindle to column: 26-1/2"

Max. dist. spindle to table: 15"

Max. dist. horizontal spindle center to table: 11-1/2"

Table swivel: 45° left and right

Vertical head tilt: 90° left and right

Turret or column swivel: 90° left and right

T-slots: 3 on 3" centers, 1/2" stud

Vertical spindle speeds: 9

Range of speeds: 270, 390, 490, 615, 860, 930, 1600, 1960 and 2950 RPM

Horizontal spindle speeds: 8

Range of speeds: 72, 170, 210, 240, 290, 550, 830 and 1300 RPM

Horizontal spindle sizes: 1" & 1-1/4"

Overall height: 80-5/16"

Approximate shipping weight: 2429 lbs.
