Sliding Table Shaper

click to zoom

    See this item in our 2015 Annual Catalog!
    SKU: G8621
    MPN: G8621
    Showroom Pickup

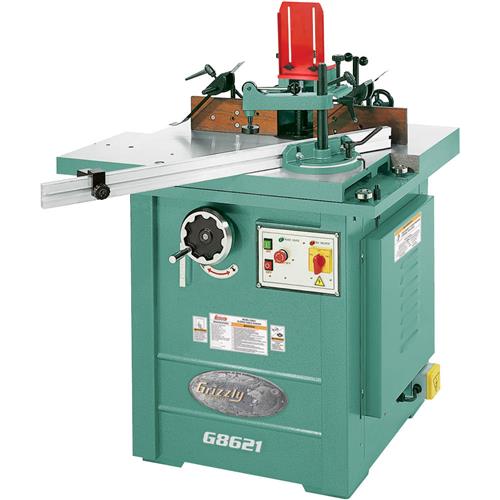

    We've taken our immensely popular shaper (G5912Z) and made it even better! Now you can get it with a sliding table! Shaping long stiles and rails will be easier and more consistent with this production wood shop machine.

    Specifications:

    • Motor: 5 HP, 220V, single-phase
    • Spindle travel: 3-1/4"
    • Spindle sizes: 3/4", 1" & 1-1/4"
    • Spindle capacity: 5-1/8" (1-1/4" spindle)
    • Spindle speeds: 3600, 5100, 8000 & 10,000 RPM
    • Maximum cutter diameter: 5-7/8"
    • Sliding table: 35-1/2" wide x 13-1/4" deep
    • Table travel: 21-7/8"
    • Table fence: 39-1/2" extruded aluminum with adjustable stop
    • Epoxy paint
    • 4" dust port
    • Cast iron miter gauge with 60° angle capability in two directions
    • Lever actuated stock hold-down integral to the miter gauge
    • Approximate shipping weight: 757 lbs.

    :

    :
