Grizzly   |  Model: G5394
Stroke Sander
Price: $1,525.00
Recently Added ×
You May Also Like ×

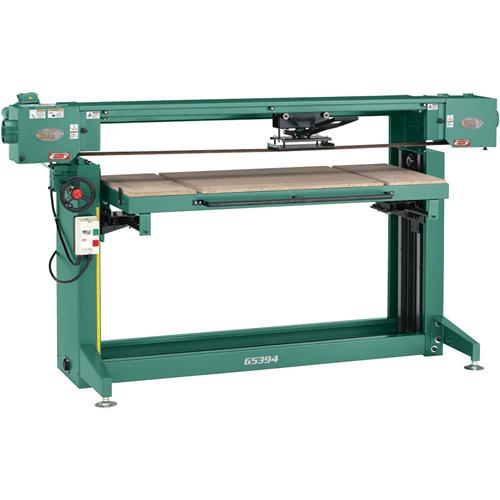

Grizzly G5394 - Stroke Sander

click to zoom

    See this item in our 2016 Main Catalog!
    Showroom Pickup
    Sand doors, wide boards, and panels with ease. This large capacity Stroke Sander can handle heavy stock removal, yet still excel at fine finishing. The manually operated platen slides on ball-bearing rollers to make it simple for you to apply just the right amount of pressure at just the right spot. The table has 24" of vertical travel and 18" of lateral travel. With its huge capacity, versatile table, and 3 HP 220V motor, this Stroke Sander is truly a coveted piece of equipment in the production shop!


    • Sliding ways travel on ball bearings
    • Table elevation is handwheel operated
    • Fully adjustable belt tracking and tension
    • Two 4" dust ports
    • Platen handle swivels left and right


    • Motor: 3 HP, 220V, single-phase, 1725 RPM, 17A
    • Table Size: 58" x 23-3/4"
    • Table vertical travel: 24"
    • Platen horizontal travel: 59"
    • Table lateral travel: 18"
    • Sanding belt size: 6" x 186"
    • Belt speed: 3500 SFPM
    • Drive roller diameter: 8"
    • Approx. shipping weight: 725 lbs.



    1 Customer Review (5 out of 5 stars): Sign in to write a review

    Frognot Texas
    Super sander 9/24/2015

    Ordered the sander for my 60th birthday, unfortunately they were out of stock, I just about said the heck with it, but I decided to order it anyway. I have a 1 1/2 hp Grizzly shaper that has been a good tool too, but I am utterly amazed at this piece of machinery. The assembly was easy, my son helped and I got him to do all the hard work LOL I was amazed that even the tracking was set perfect, it may not happen all the time but, I suspect it will be very close. The operation is smooth as silk, even though it isn't perfectly level as I have to move some other machinery around to get it where I want it permanently

    I would definitely recommend buying one if you are thinking about it and would be more than happy to show it off to anyone in our area thinking about buying one

    Well done team Grizzly, and to be honest, I am pretty hard to please sometimes, just ask my wife LOL

    Animation for G5394
