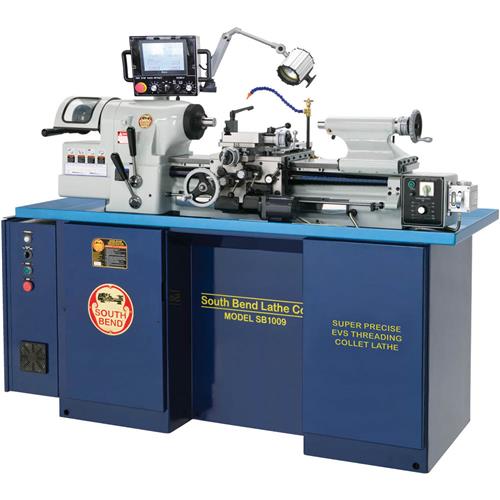

SB1009 South Bend Super Precision Digital Threading Collet Lathe

List Price:$34,500.00
Price:$32,250.00
Freight:*$355.00
Your Price:**$32,605.00
Add To Wish List


Description

The Digital Threading Control replaces traditional threading gearboxes with a microprocessor-controlled, servo-driven leadscrew. Simply type in the desired thread pitch on the numeric pad of the touchscreen LCD panel and start the threading cycle as on conventional lathes. This system controls and synchronizes the main spindle rotation on 2-axis feed rate to produce a precise threading cycle for any given inch or metric thread pitch. Noise and vibration are also reduced as there are no gears in the gearbox.

Features:

  • Spindle runout within 0.00125 mm (50 millionths of an inch)
  • Hardened and ground spindle mounted on high-precision angular-contact bearings for sustained precision and rigidity
  • Infinitely variable spindle speed between 50 - 4000 RPM
  • 3 HP motor with current vector inverter drive for increased low-end torque
  • Fast lever-action collet closer
  • Independent variable feeds for carriage and cross slide
  • Turcite B slideway bearing surface between carriage and bed
  • Mitutoyo linear scales on X and Z axis
  • Delta interface display monitor
  • Inch and metric dual dials
  • Automatic threading stop and control
  • High quality 3 HP Japanese Yaskawa inverter
  • An ideal machine for super high-precision work on small parts using 5-C collets
  • 5-C bar stock diameter up to 1.0625"
  • Built to extremely high South Bend industrial standards for industrial-duty uses

    Tool post is optional

    CAPACITY

  • Swing over bed 11"
  • Distance between centers 18"
  • Swing over cross slide 5.98"
  • Swing over gap N/A
  • Swing over saddle 9.05"
  • Cross slide travel 5.98"
  • Compound travel 3"
  • Carriage travel 25"

    HEADSTOCK

  • Spindle nose 5-C (10°)
  • Spindle bore 1.25²
  • Spindle taper 4°
  • Spindle speeds w/ 5-C 50 ­ 4000 RPM
  • Spindle speed w/ 6" 3-Jaw
  • Chuck 50 ­ 3000 RPM

    TAILSTOCK

  • Tailstock taper MT #2
  • Tailstock travel 3.75"
  • Tailstock barrel diameter 1.358"

    THREADS

  • Inch threads 3.175-500 TPI
  • Metric threads 0.55-6.55 mm
  • Modular pitches N/A
  • Diametral pitches N/A

    FEEDS

  • Number of longitudinal feeds Variable
  • Longitudinal feed range 0.3125"-7" / min
  • Number of cross feeds Variable
  • Cross feed range 0.1875"-4" / min

    ELECTRICAL

  • Voltage/phase/amps 220V, 3-phase, 10A
  • Spindle motor 3 HP
  • Coolant motor 1/8 HP
  • Feed inverter motor 1/2 HP

    GENERAL

  • Machine footprint 59" W x 25" D
  • Approximate shipping weight 2645 lbs.
