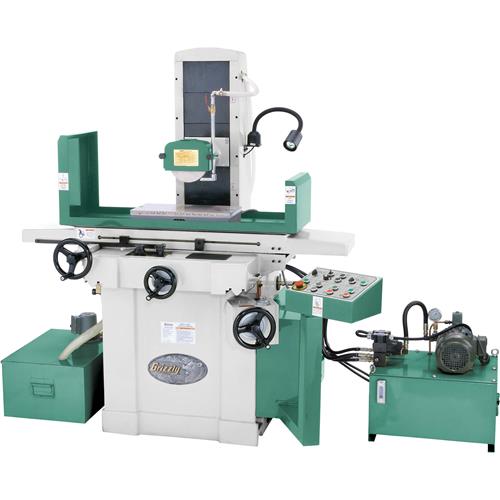

Grizzly G0567 - Surface Grinder 10" x 20"

The latest addition to our line of Surface Grinders sports massive castings, a precision spindle and scraped combination Vee and flat ways needed for holding exacting tolerances and producing mirror like finishes. Add to that the silky smooth, automatic hydraulic control with infinitely variable stroke (200 1000 inches per minute), step-over (0 0.335")& down feed (0.0001" 0.001" steps) and you will find the ease of operation allows for tighter control over your production & products! It's as easy to setup as it is to use! All hydraulic lines control cables come supplied with one-way fittings making installation a breeze.

Features:

Flood coolant system

Column dial

Cross feed dial

Stone balancing kit

Tool box

Wheel dressing device

2-pc. T-bolt set

Double spanner wrench

Adjustable spanner wrench

Cast iron construction

Specifications:

Spindle motor: 3 HP, 3-phase, 220V, TEFC

Hydraulic motor: 2 HP

Coolant motor: 1/8 HP

Crossfeed motor: 1/8 HP

Table surface: 10" x 20"

Maximum grinding area: 10" x 21-1/2"

Longitudinal travel: 22-5/8"

Cross travel: 11"

Maximum distance table to spindle center: 21-1/16"

T-slot and size: 1-1/2" stud, 7/8" head

Grinding wheel: 8" D x 1-1/4" B x 1" W

Table speed: 200" 1000"/min

Vertical handwheel graduation: 0.0005"

Vertical handwheel revolution: 0.1"

Automatic downfeed increment: 0.0001" 0.001"

Crossfeed handwheel graduation: 0.001"

Crossfeed handwheel revolution: 0.2"

Automatic crossfeed of saddle: 0 0.335"

Overall dimensions: 75-5/8"H x 65"W x 59-7/8"D

Column size: 9-1/4" x 12-3/4"

Spindle diameter: 1-1/4"

Spindle speed: 3,450 RPM

Approximate shipping weight: 4334 lbs.
