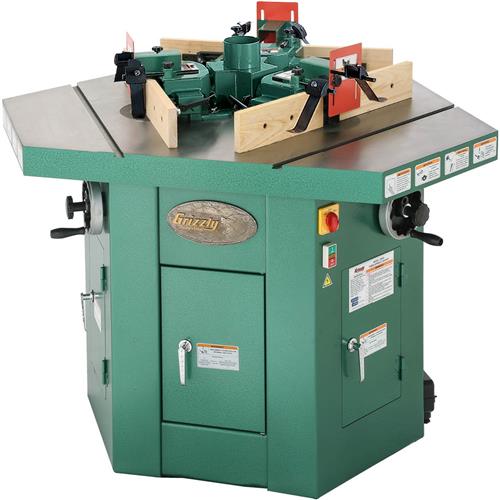

Grizzly Three Spindle Shaper

click to zoom

    See this item in our 2015 Annual Catalog!
    SKU: G9933
    MPN: G9933
    Showroom Pickup

    Production Shops - your prayers have been answered! This 3 sided, heavy-duty shaper will pay for itself quickly in cabinet and production shops that normally require several shapers or time consuming cutter changes. The combinations of cutters and set-ups you can utilize on this machine are endless. A Great Time Saver!

    Specifications:

    • Motor size: 3 HP, 220V, single-phase, TEFC (Includes 3 motors)
    • Amp draw: 18 amps per motor
    • Precision-ground cast iron table
    • Table working height: 35"
    • Spindle size: 1-1/4" (3/4" spindle available as an option)
    • Exposed spindle length: 4"
    • Spindle travel: 4"
    • Maximum cutter diameter: 6"
    • Spindle speeds: 7000 and 10,000 RPM
    • Table working size: 17" x 32" 13-1/2" (each side)
    • Bearing type: Shielded and lubricated for life
    • Approximate shipping weight: 1260 lbs.

    Features:

    • Separate FWD/REV Switch for each motor
    • 3 micro-adjustable fences
    • Heavy-duty miter gauge included
    • Spindles include spacers and nuts
    • 4" convenient dust hood included
    • Includes service wrenches
    • 1/2" router bit spindle available as an option

    :

    :
