Grizzly   |  Model: G0729
Vertical Mill with Power Feed
Reg: $3,595.00
Price: $3,425.00
Recently Added ×
You May Also Like

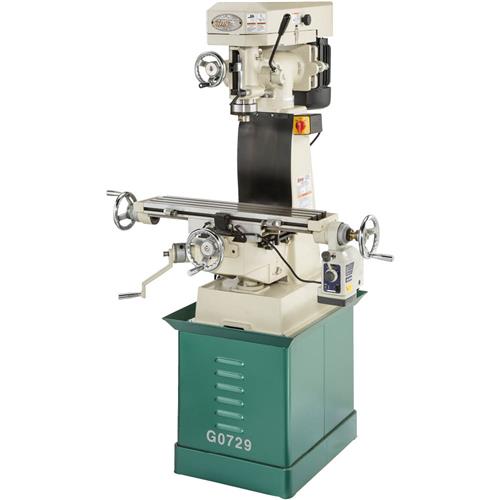

Grizzly G0729 - Vertical Mill with Power Feed

click to zoom

tap to zoom

See this item in our 2018 Main Catalog!
620 621
See this item in our 2018 Spring Catalog!
26
Buy Now!
Price:
Freight:  Freight
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More

Simple, solid, and extremely accurate. This 6" x 26" Vertical Milling Machine is carefully built in Taiwan with heavy castings throughout for rigidity and accuracy. Just like larger and more expensive mills, the headstock tilts left or right 45° and rotates up to 90° in both directions, so you're not limited when it comes time to machine complex angles. To ensure maximum power for 110V operation, we used a 1-1/2 HP TEFC spindle motor. Speed changes are quick and easy with a stepped-pulley V-belt drive system. To keep table movement gliding effortlessly, all ways are lubricated with a one-shot oiler system. Available with or without longitudinal power feed. This is a very nice knee mill for those looking to step-up from a benchtop dovetail milling machine.

FEATURES:

  • Dovetail sliding ways for accuracy
  • One-shot oiler lubrication system
  • Large stroke handle
  • Forward/Reverse switch
  • Rotating turret style column
  • Head tilts side to side
  • Precision-ground table
  • Coarse and fine downfeed controls
  • Adjustable downfeed stop system

    SPECIFICATIONS:

  • Motor: 1-1/2 HP, 110/220V, prewired 110V, 1725 RPM
  • Power transfer: V-belt drive
  • Spindle taper: R-8
  • Spindle travel: 3"
  • Max. distance spindle to table: 12-1/4"
  • Max. distance spindle to column: 6-1/2"
  • T-Slots: 3 @ 1-11/16" on center, 9/16" wide
  • Table size: 26" L x 6-1/8" W
  • Table travel (longitudinal): 15-5/8"
  • Table travel (cross): 6"
  • Knee travel: 13-1/2"
  • Max. drilling capacity for cast iron: 1"
  • Head tilt: 45° left/right
  • Number of speeds: 9
  • Speeds: 230, 320, 570, 670, 1200, 1420, 1650, 2170 and 2520 RPM
  • Overall dimensions: 45-3/4" W x 68" H x 49-3/4" D
  • Approximate shipping weight: 746 lbs.
