Grizzly   |  Model: G0728
Vertical Mill
Price: $3,050.00
Recently Added ×
You May Also Like ×

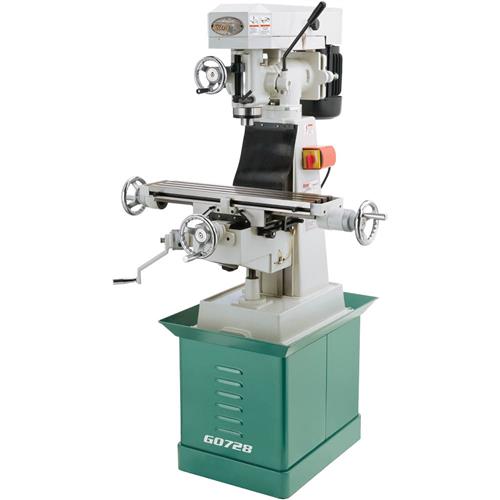

Grizzly G0728 - Vertical Mill

click to zoom

See this item in our 2016 Main Catalog!
583 584
Showroom Pickup

Simple, solid, and extremely accurate. This 6" x 26" Vertical Milling Machine is carefully built in Taiwan with heavy castings throughout for rigidity and accuracy. Just like larger and more expensive mills, the headstock tilts left or right 45° and rotates up to 90° in both directions, so you're not limited when it comes time to machine complex angles. To ensure maximum power for 110V operation, we used a 1-1/2 HP TEFC spindle motor. Speed changes are quick and easy with a stepped-pulley V-belt drive system. To keep table movement gliding effortlessly, all ways are lubricated with a one-shot oiler system. Available with or without longitudinal power feed. This is a very nice knee mill for those looking to step-up from a benchtop dovetail milling machine.

FEATURES:

  • Dovetail sliding ways for accuracy
  • One-shot oiler lubrication system
  • Large stroke handle
  • Forward/Reverse switch
  • Rotating turret style column
  • Head tilts side to side
  • Precision-ground table
  • Coarse and fine downfeed controls
  • Adjustable downfeed stop system

    SPECIFICATIONS:

  • Motor: 1-1/2 HP, 110/220V, prewired 110V, 1725 RPM
  • Power transfer: V-belt drive
  • Spindle taper: R-8
  • Spindle travel: 3"
  • Max. distance spindle to table: 12-1/4"
  • Max. distance spindle to column: 6-1/2"
  • T-Slots: 3 @ 1-11/16" on center, 9/16" wide
  • Table size: 26" L x 6-1/8" W
  • Table travel (longitudinal): 15-5/8"
  • Table travel (cross): 6"
  • Knee travel: 13-1/2"
  • Max. drilling capacity for cast iron: 1"
  • Head tilt: 45° left/right
  • Number of speeds: 9
  • Speeds: 230, 320, 570, 670, 1200, 1420, 1650, 2170 and 2520 RPM
  • Overall dimensions: 45-3/4" W x 68" H x 49-3/4" D
  • Approximate shipping weight: 746 lbs.
  • Accessories and Related Items: View All

    You May Also Like:

    Customers who purchased this item also purchased:

    1 Customer Review (4 out of 5 stars): Sign in to write a review

    Ken Shirey
    Houston, Texas
    Perfect for home use 7/12/2016

    I drove from Houston to the Springfield showroom to look at this mill alongside the other offerings. After a careful evaluation, I determined that I didn't want the China model (G0800) - the finish was too sloppy and rough, the moving parts were sloppy, and the handles drove me nuts.

    This model, made in Taiwan, fits the bill nicely. It's sturdy, has good workmanship, and is very rigid. Properly trammed, it fly-cuts a very smooth surface on stainless steel (overlapped, multiple passes). Nice smooth milling cuts. I've used larger knee mills, and find that this operates just like its larger brethren - but fits in my too-small garage. One thought - don't get a huge 6" mill vise like I did. The Y axis won't allow the full movement with a gargantuan 6" vise bolted on.

    Overall, I'm happy with this purchase. I bought it for small fabrication tasks (accessories for my woodworking equipment, making my own woodworking tools, repairs of broken equipment, etc). I don't own a machine shop, and wouldn't buy this for a large production operation - but that's not where this is positioned. I think it is a perfect choice for a home shop.
