Grizzly   |  Model: G0842
Wood Lathe with Copy Attachment
Price: $593.75
Recently Added ×
You May Also Like

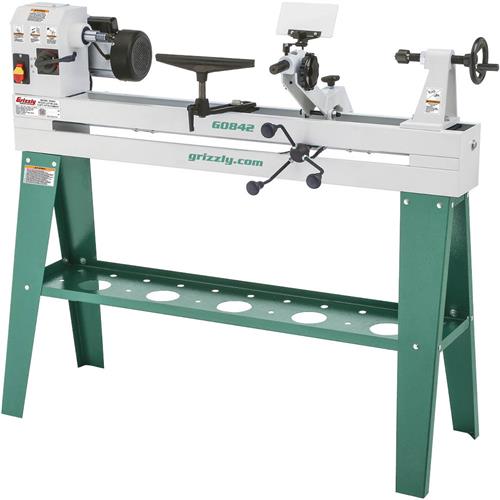

Grizzly G0842 - Wood Lathe with Copy Attachment

click to zoom

tap to zoom

See this item in our 2018 Main Catalog!
149
Model: G0842
Buy Now!
Price:
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize
Total:
Monthly payments as low as . Learn More
The G0842 Wood Lathe with Copy Attachment is ideal for the hobby furniture maker. With a 110V, 3/4 HP motor and variable-speed spindle, this machine will allow you to easily reproduce stair spindles or chair and table legs up to 32" long using a template or master workpiece. The copy attachment also drops out of the way for turning new spindles.

Specifications:

  • Motor: 3/4 HP, 110V, single-phase, 11A
  • Swing over bed: 14"
  • Swing over tool rest base: 9"
  • Distance between centers: 37"
  • Distance between centers with copy device: 32"
  • Spindle speeds: Variable, 600-2400 RPM
  • Spindle thread size: 1" x 8 TPI
  • Tool rest width: 12"
  • Tool rest post diameter: 20mm
  • Spindle and tailstock taper: MT#2
  • Overall dimensions: 62"L x 24"W x 48"H
  • Approximate shipping weight: 164 lb.
Features:
  • 37" between centers
  • 14" swing over bed, 9" swing over tool rest
  • Copy device for workpieces up to 32" long and 9" diameter
  • 12" tool rest
  • Includes spur center, cupped live center, knock-out tool, tool rest, and 6" faceplate
